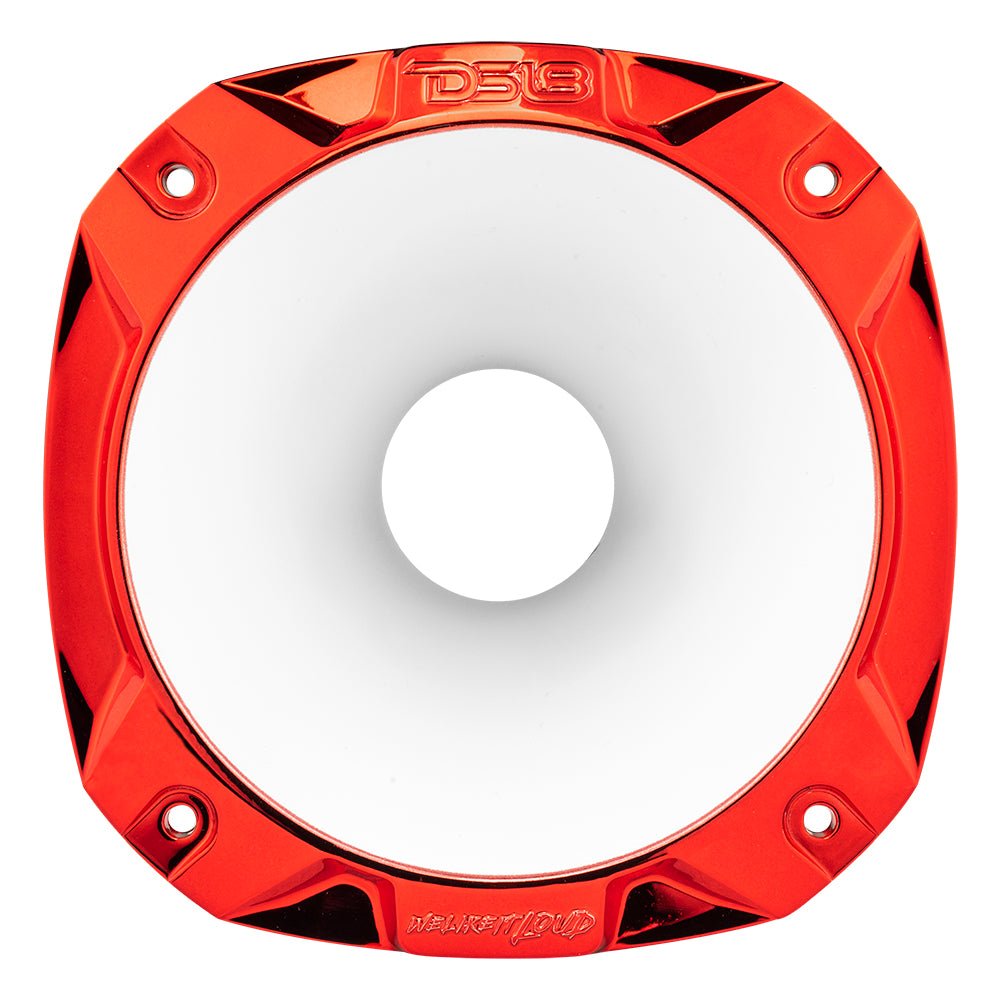

DS18 PRO-HP102 2" Throat Bolt On 35° 4.84" Depth Plastic Horn
DS18’s PRO-HP102 is our latest addition to our series of throated horns!
This Waveguide has a mounting depth of 4.81” and a throat diameter of 2” for extreme directional sound that can fit anywhere!
This horn is built for compression drivers and constructed from ABS Plastic for higher resistance to corrosion and physical damage as well as a brighter selection of colors to choose from!

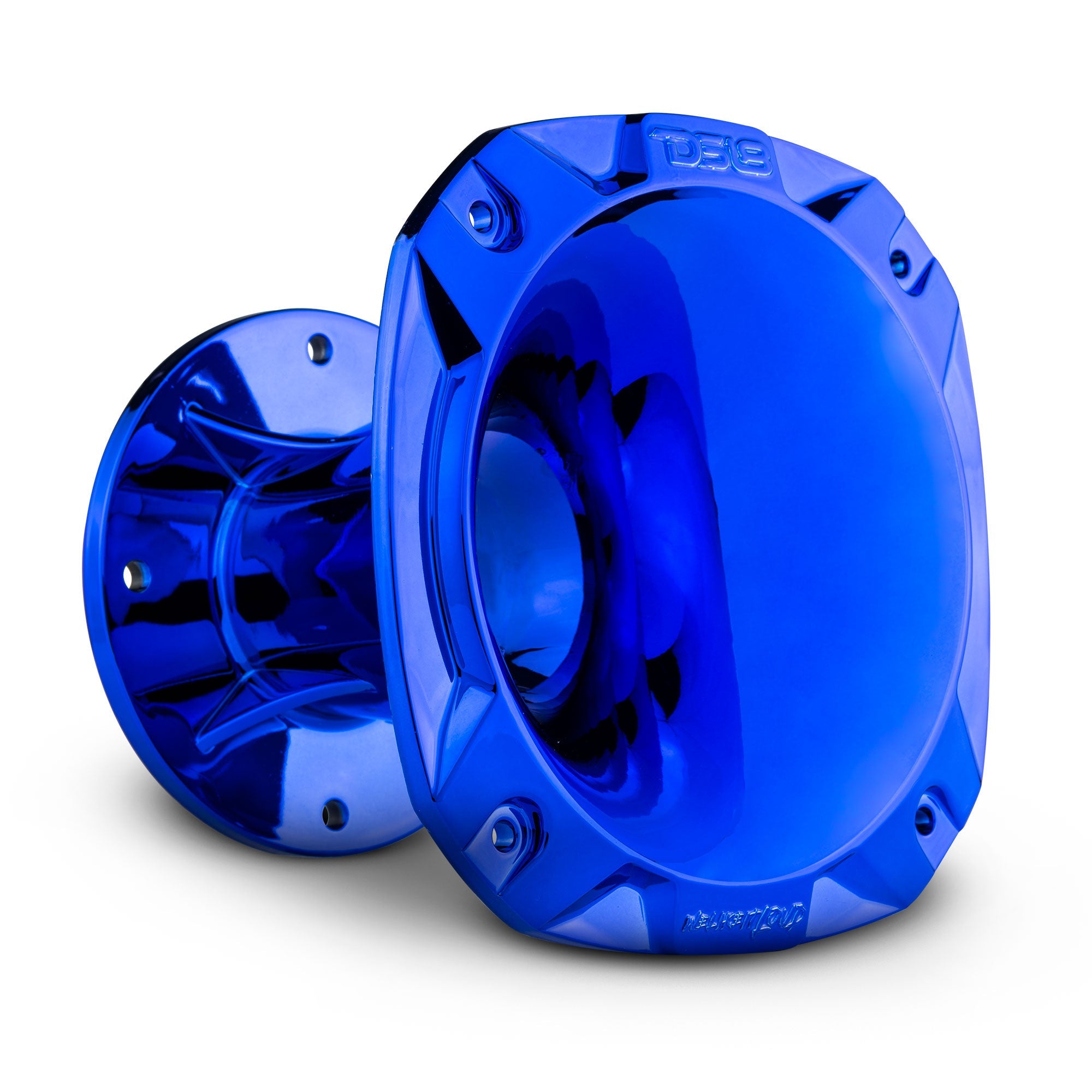

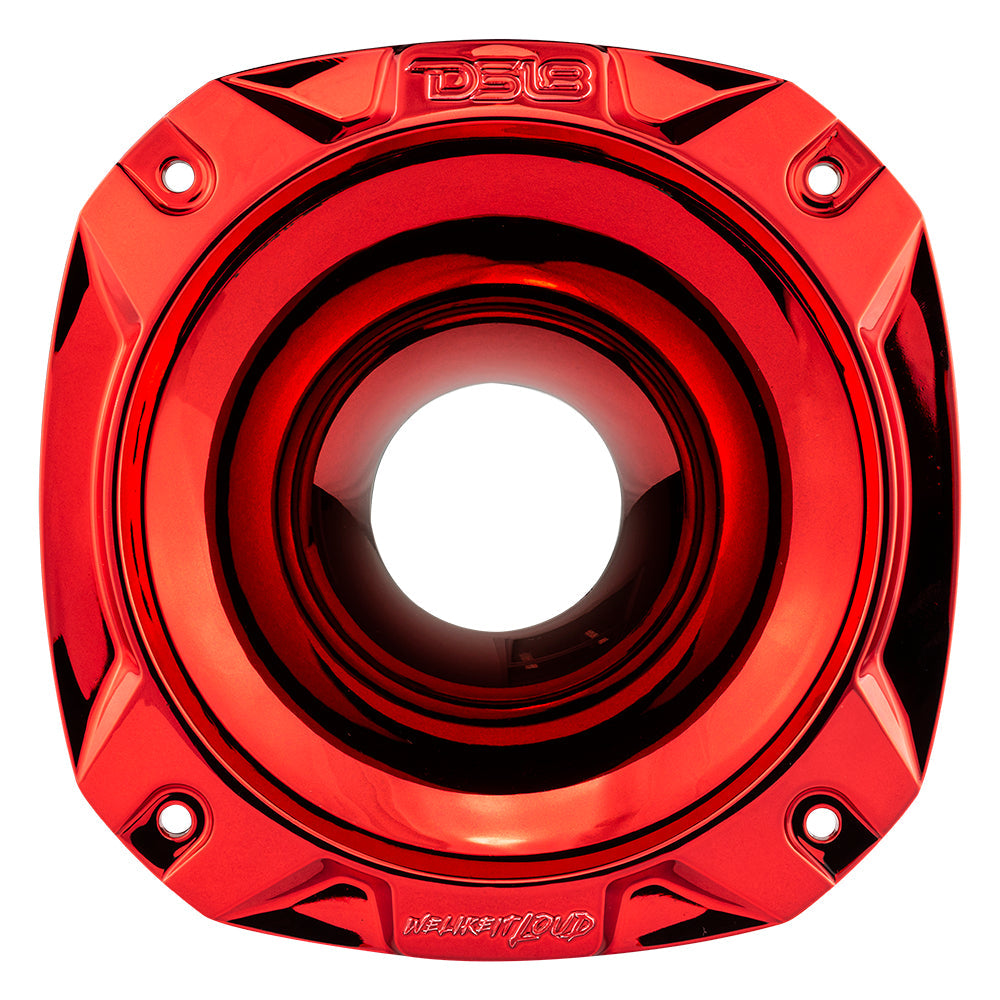

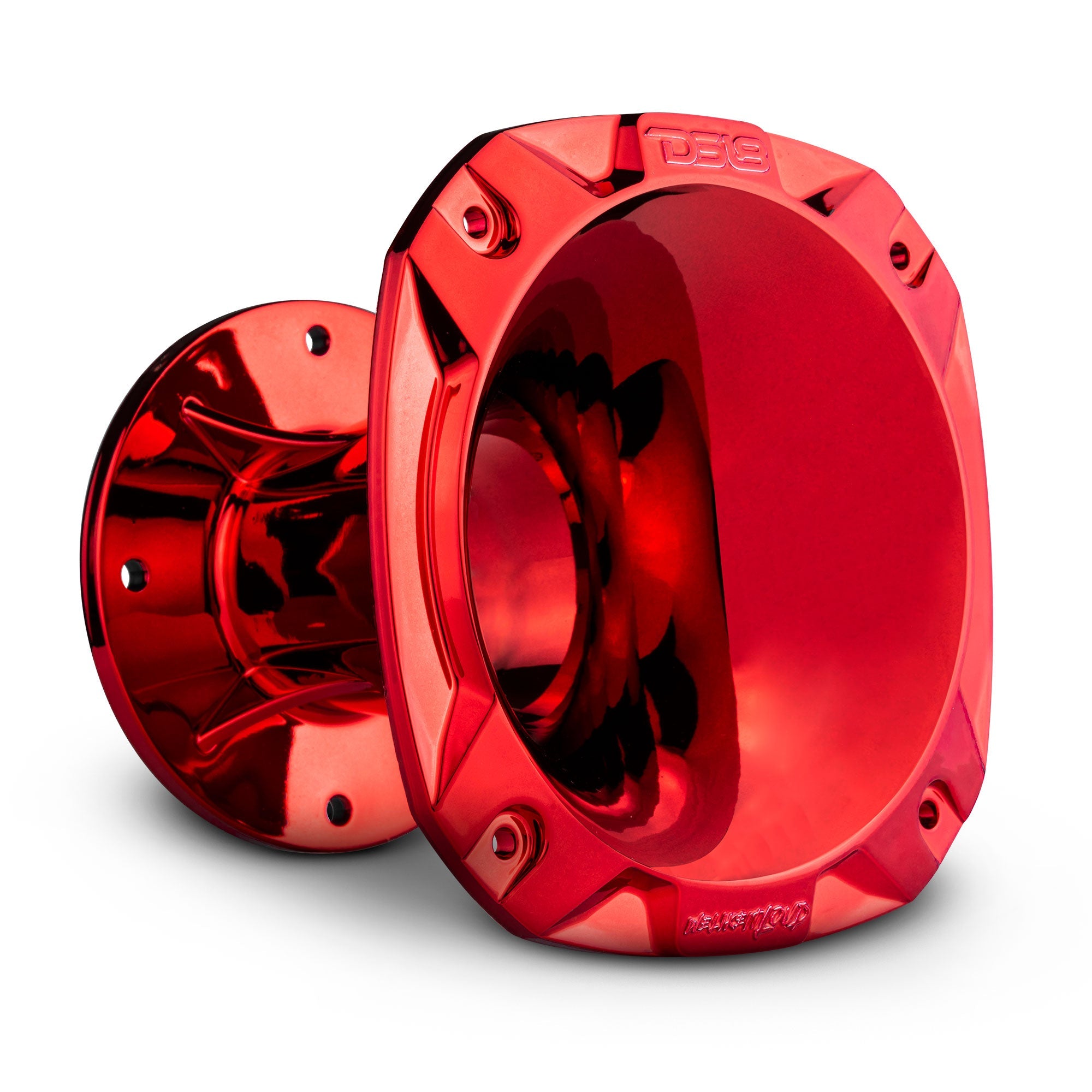

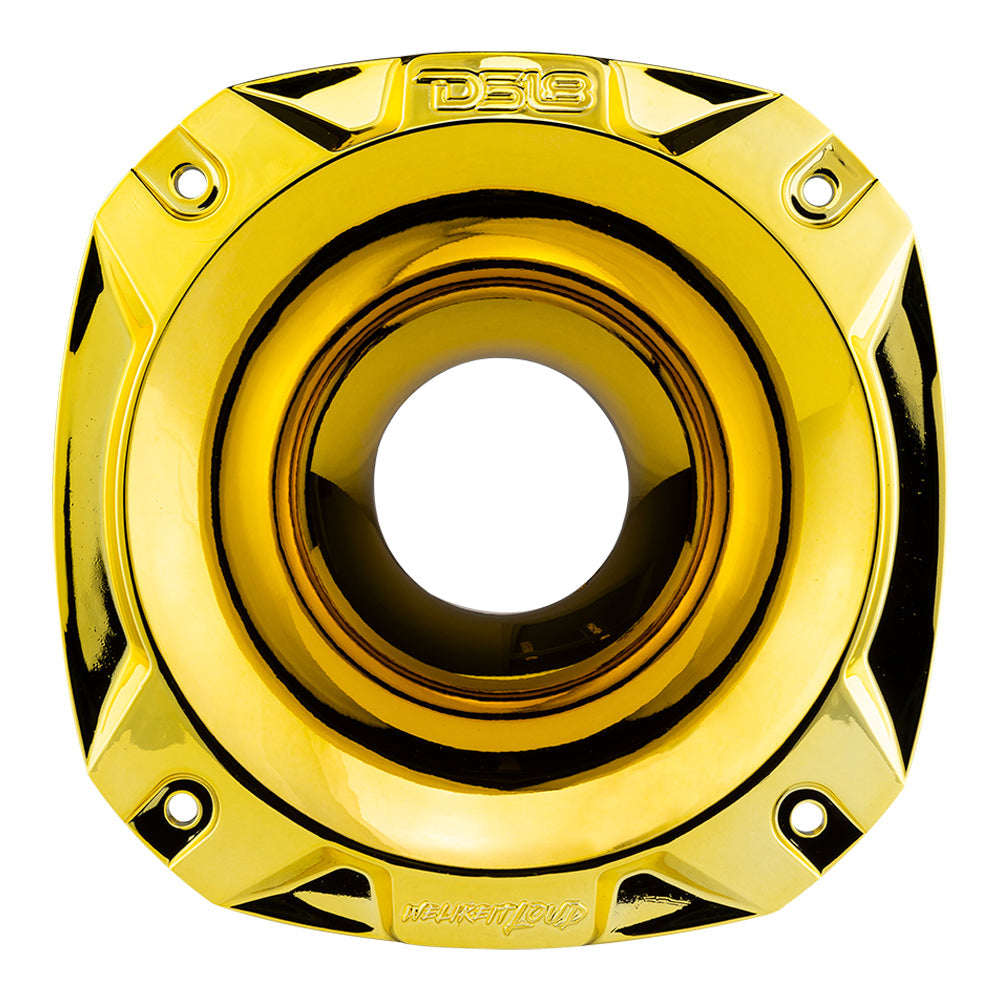

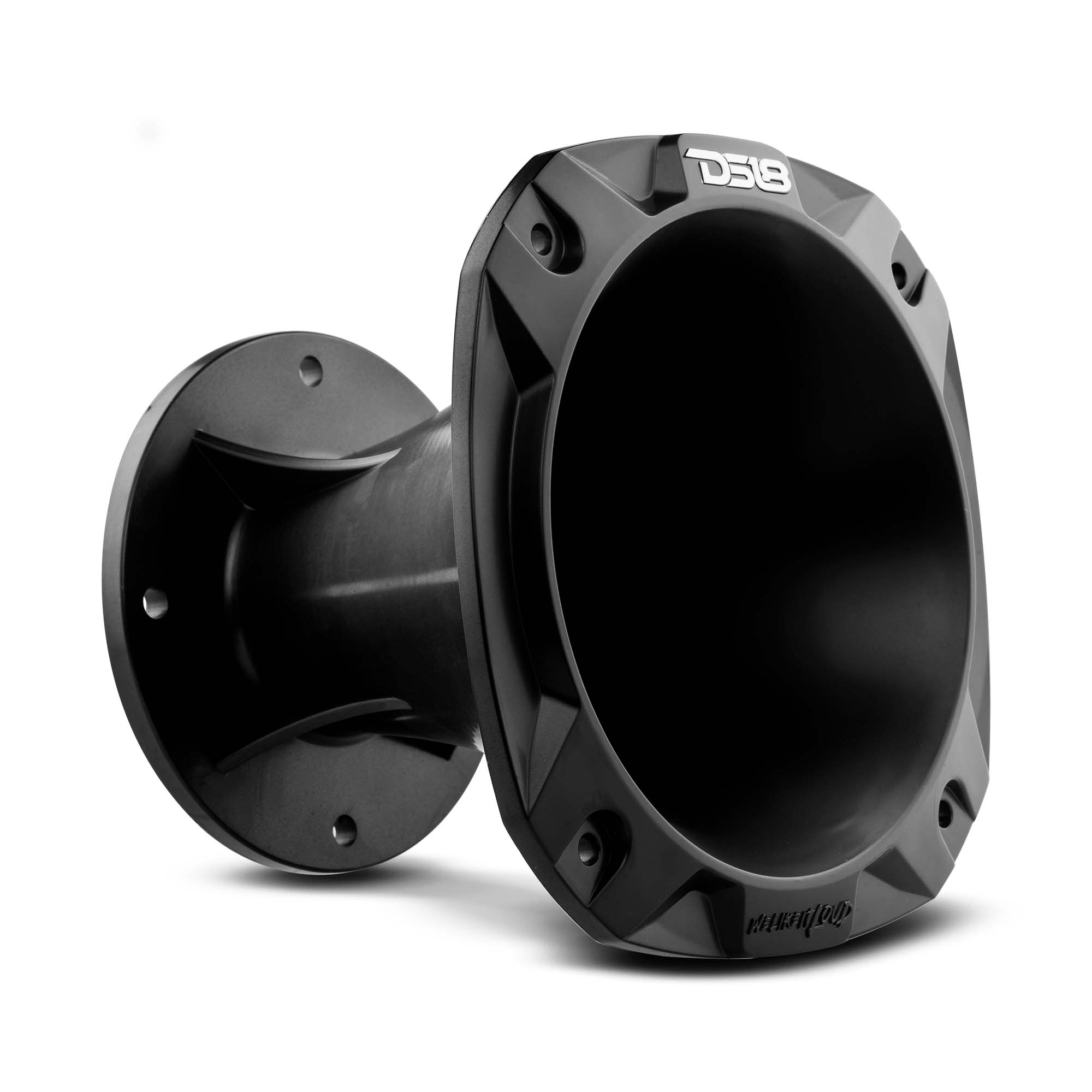

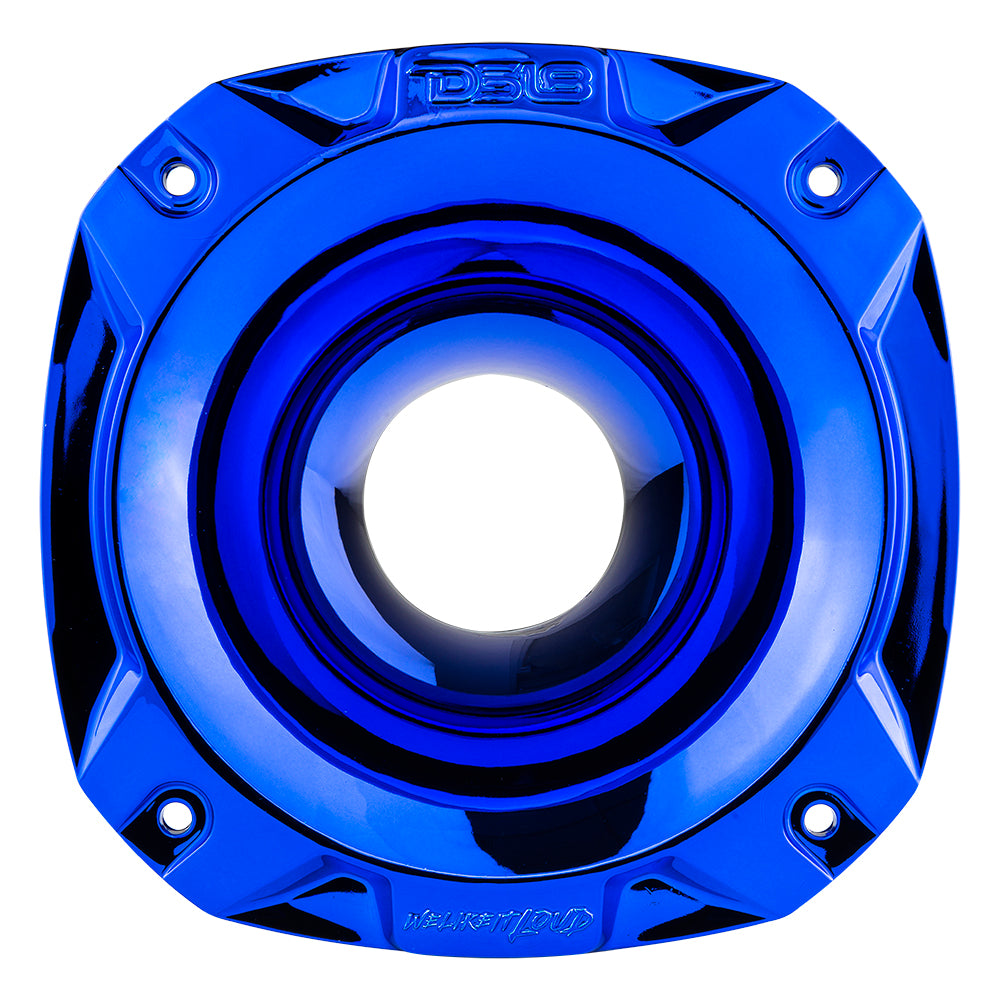

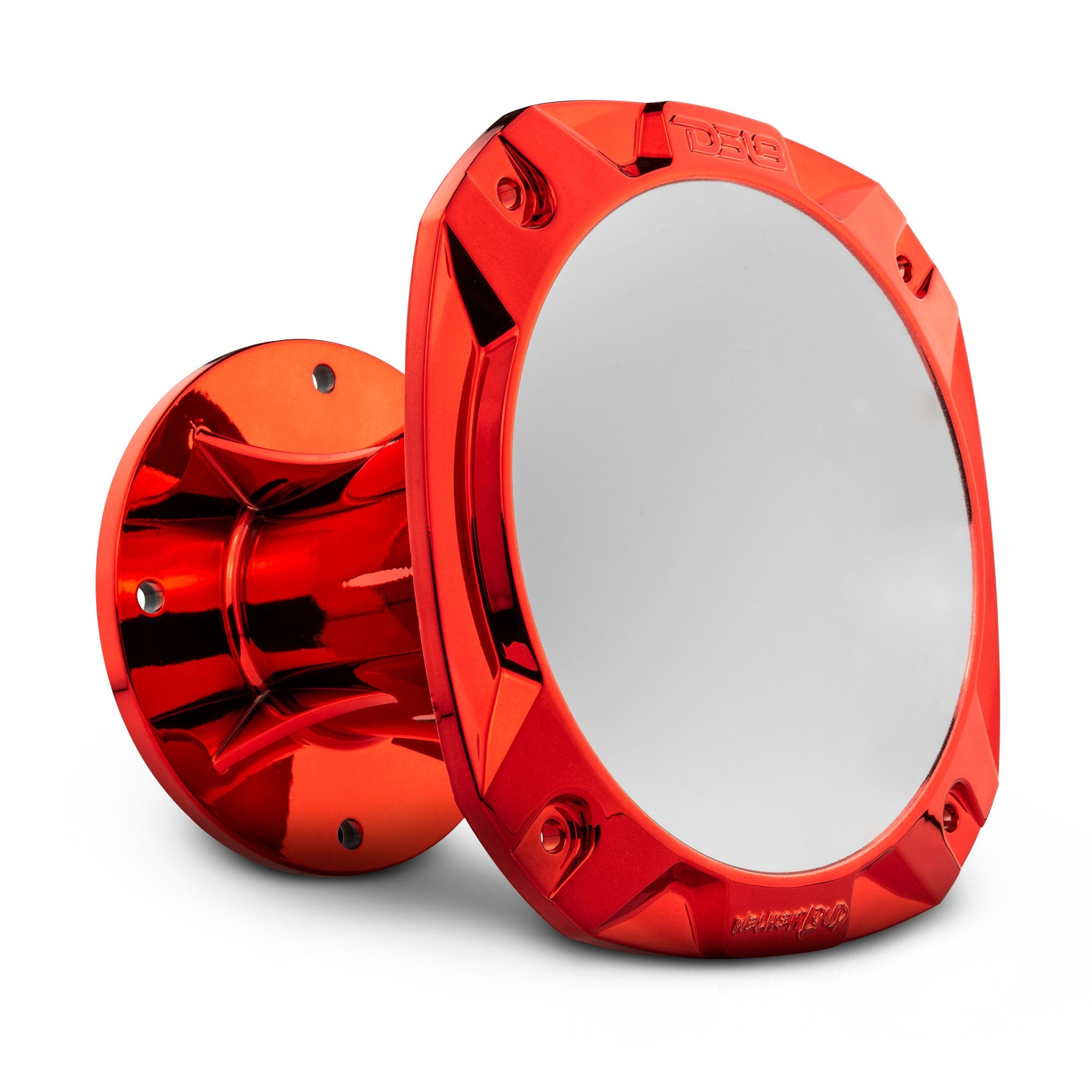

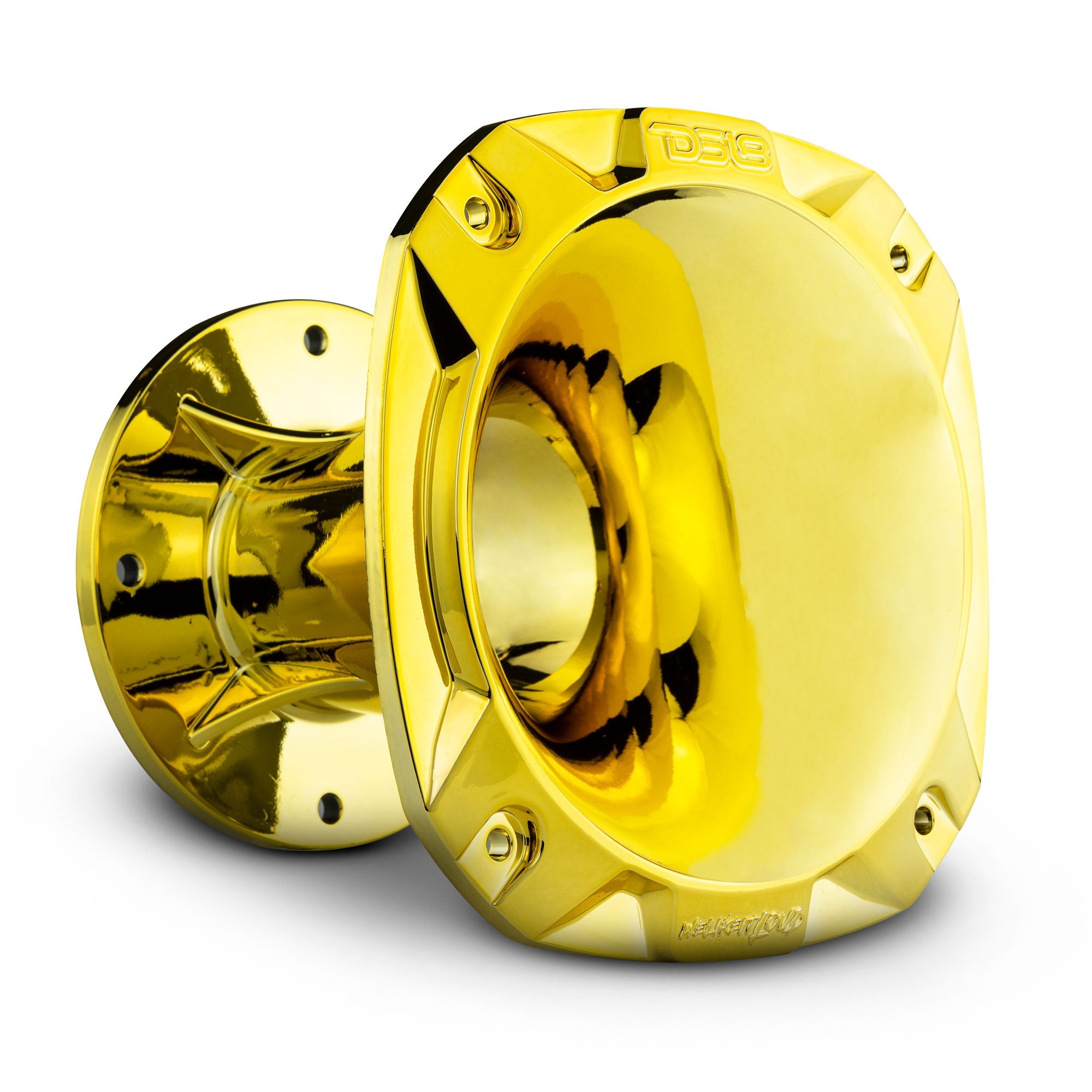

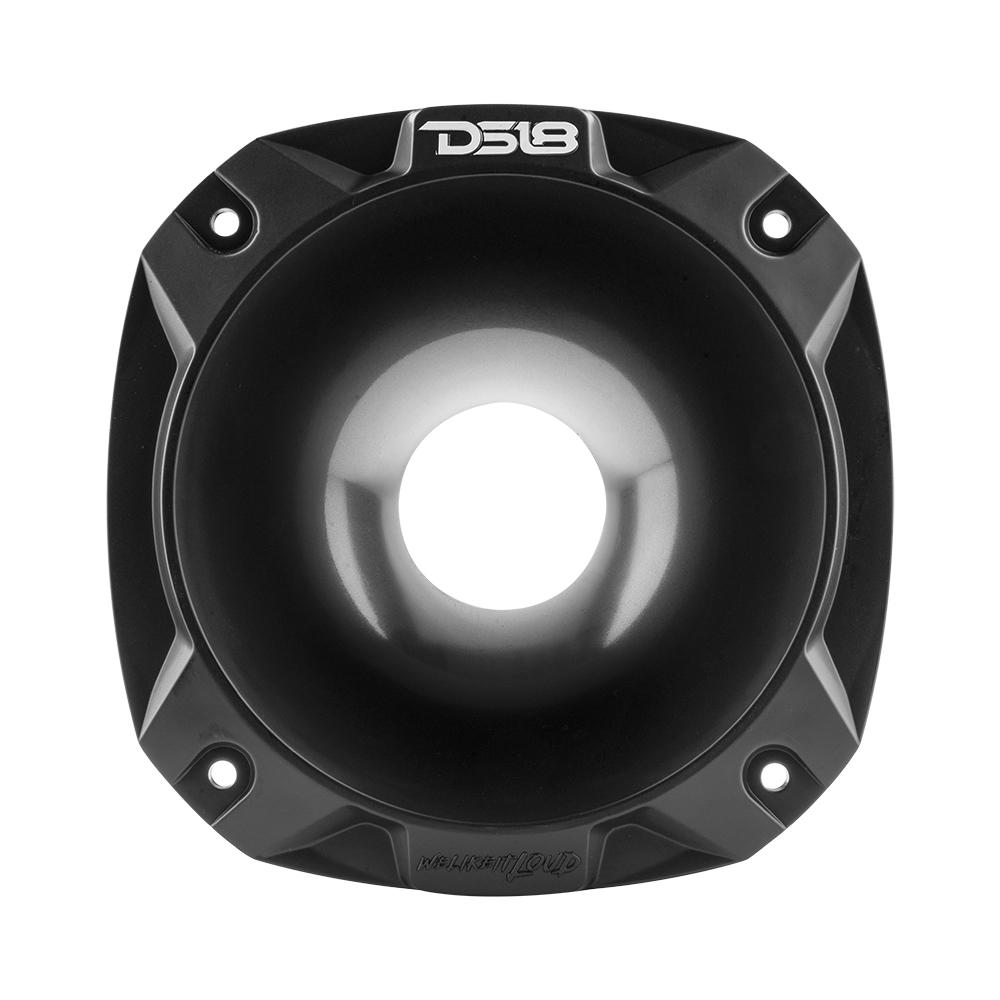

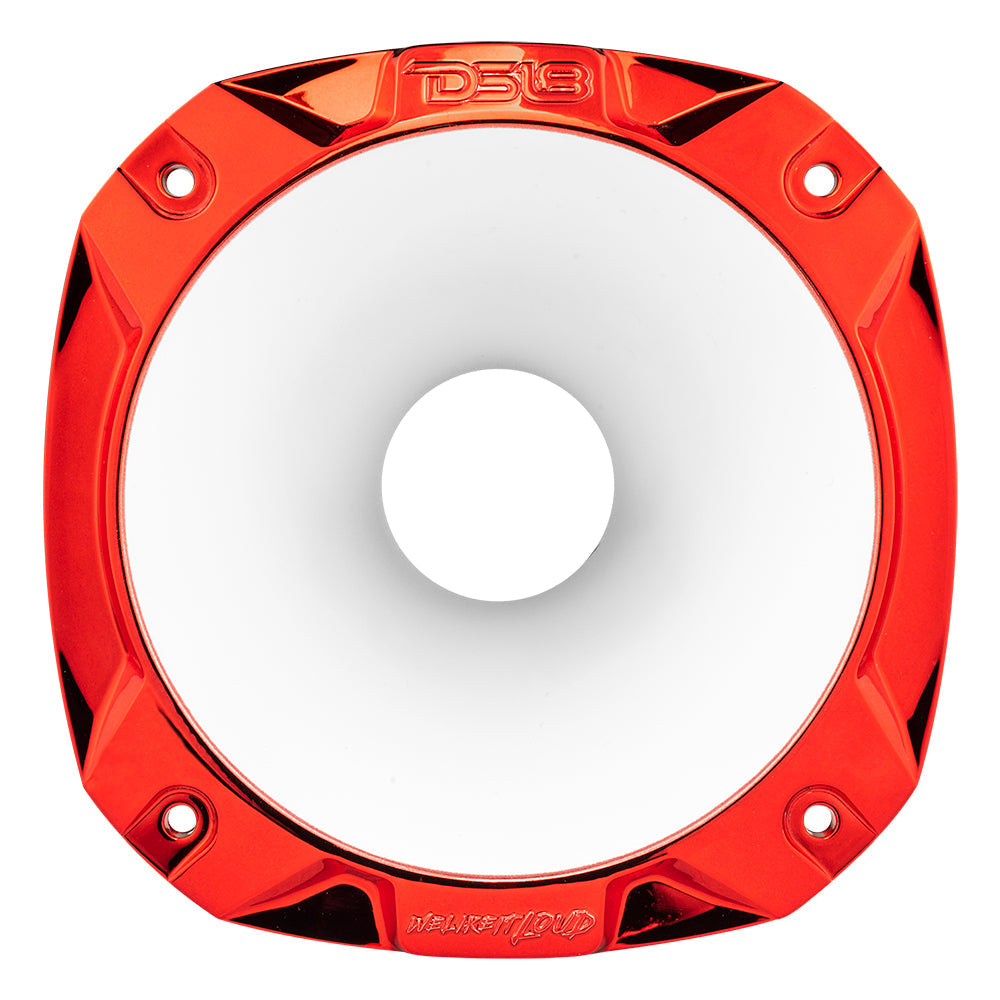

To give your system a more polished look, DS18 is offering the PRO-HP102 in five colors: Black. Chrome Blue, Chrome Gold, Chrome Red and Chrome Red/White.

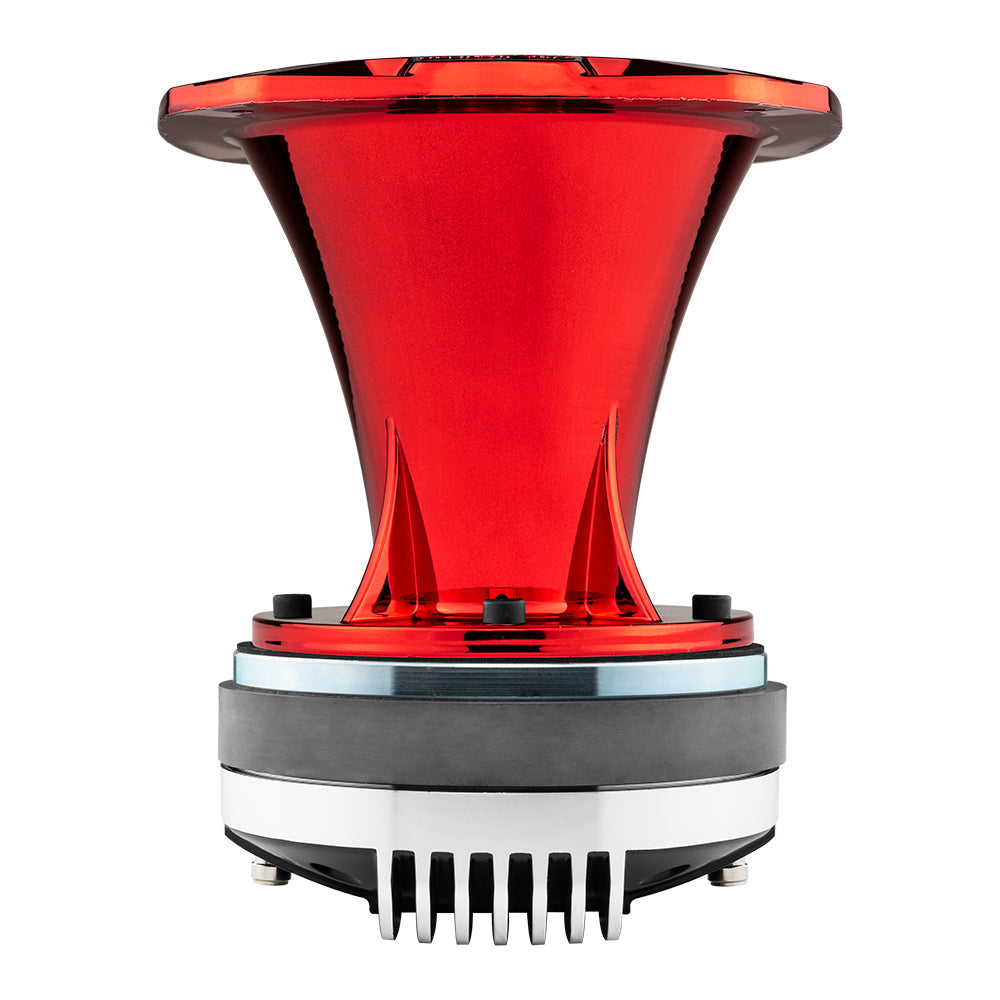

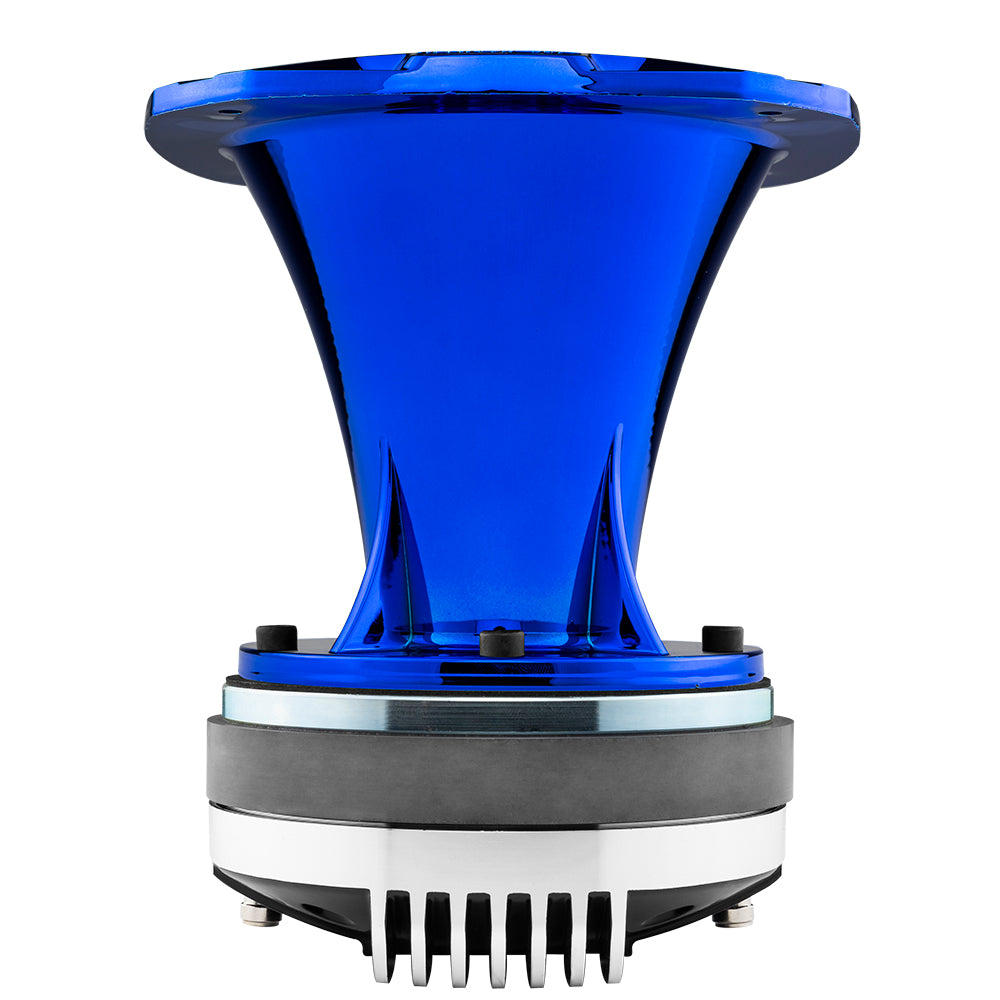

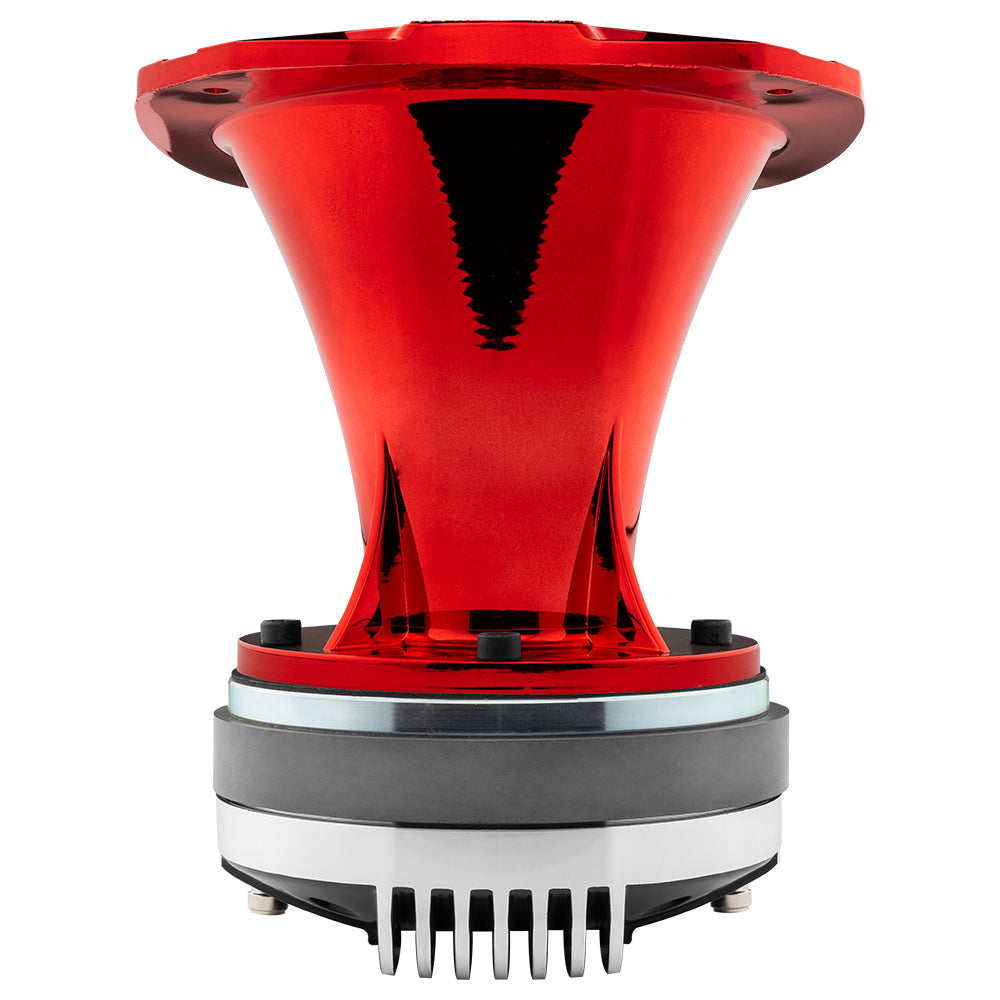

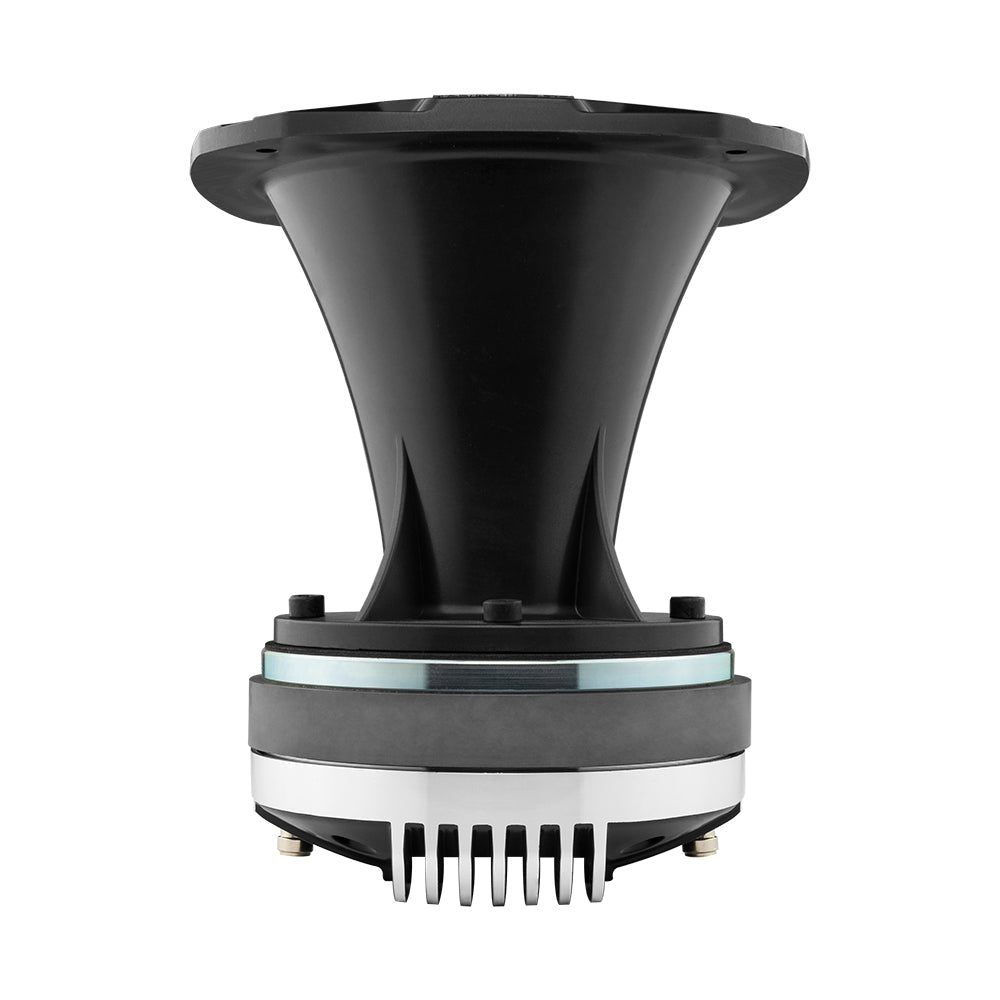

This bolt on throat horn requires a 4-bolt pattern on your driver to be installed correctly.
Get full sound coverage with the PRO-HP102!
Highlights
- ABS Plastic Frame
- Throated horn for elevated directional sound
- 4 bolt pattern for comparability for most bolt on drivers
Great For
- Stunt Walls
- Car Audio
Technical Details
| Installation Type | Bolt-on |
| Throat Diameter: | 2" / 50.8mm |
| Nominal Horn Diameter: | 6.5" |
| Sound Coverage: | 35° Rounded |
| Measurements: | |
| Overall Diameter: | 7.08" / 180mm |
| Overall Depth: | 5.17" / 131.50mm |
| Mounting Depth: | 4.84" / 122.936mm |
| Driver Bolt Pattern: | 4"/ 102mm x 4-0.26" / 6.8mm |
| Mounting Bolt Pattern: | : 6.3" / 161mm x 4- 0.21" / 5.5mm |
| Mounting Hole Diameter: | 5.43" / 138mm |
