4th gen Toyota Tacoma TRD Pro Grill - 20" LED Light Bar Kit

Overview

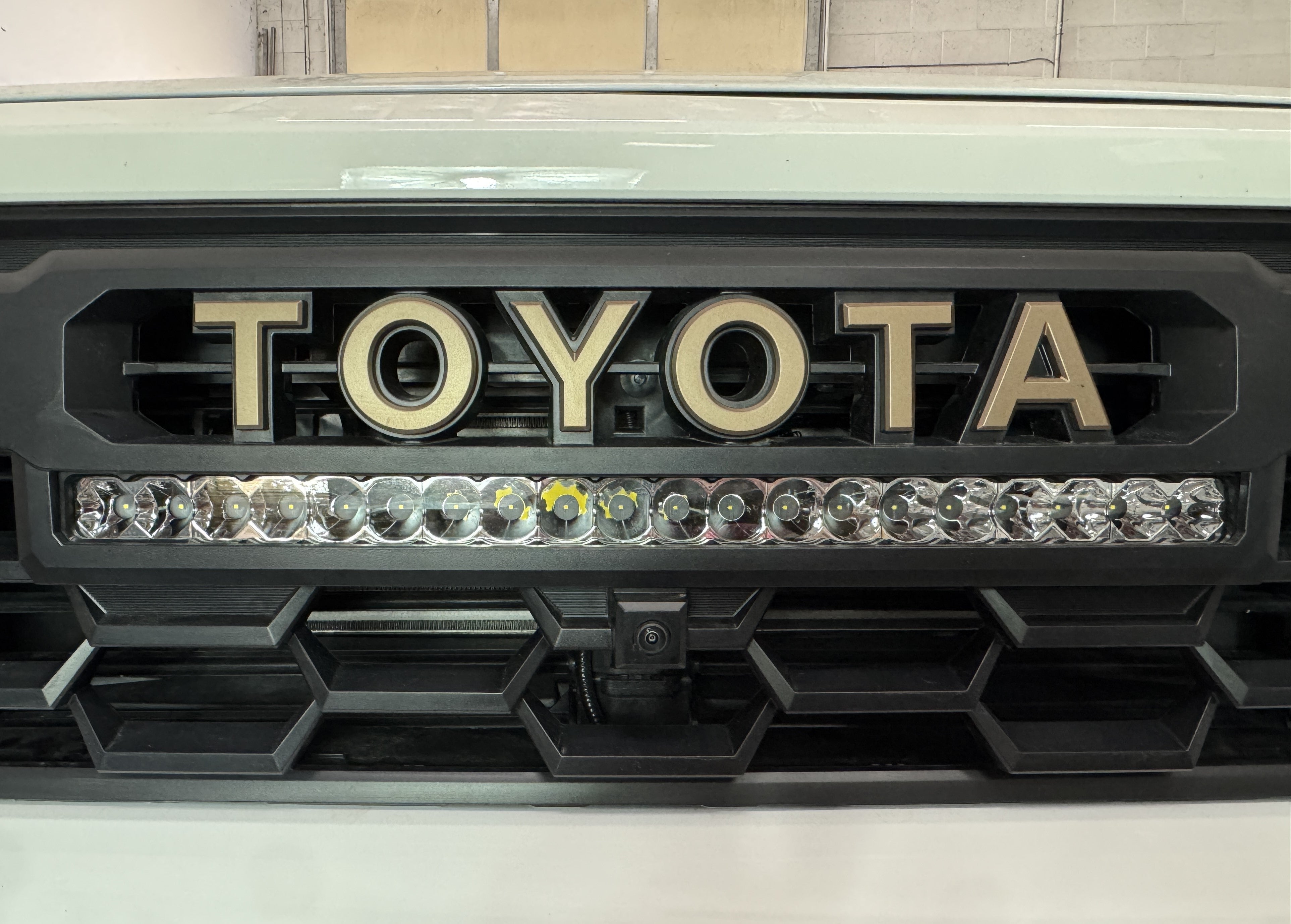

The 6 series LED 20 inch light bar is one of the most rugged and reliable lights on the market. We have paired the bar with our newly designed brackets that will provide you with the perfect solution to mount this in your 2024+ Toyota Tacoma TRD Pro grill or Trailhunter grill!  We include everything you will need to mount and install the lightbar in your grill, including a square dash switch that will fit the OEM switch panel!

Designed and assembled in the USA!

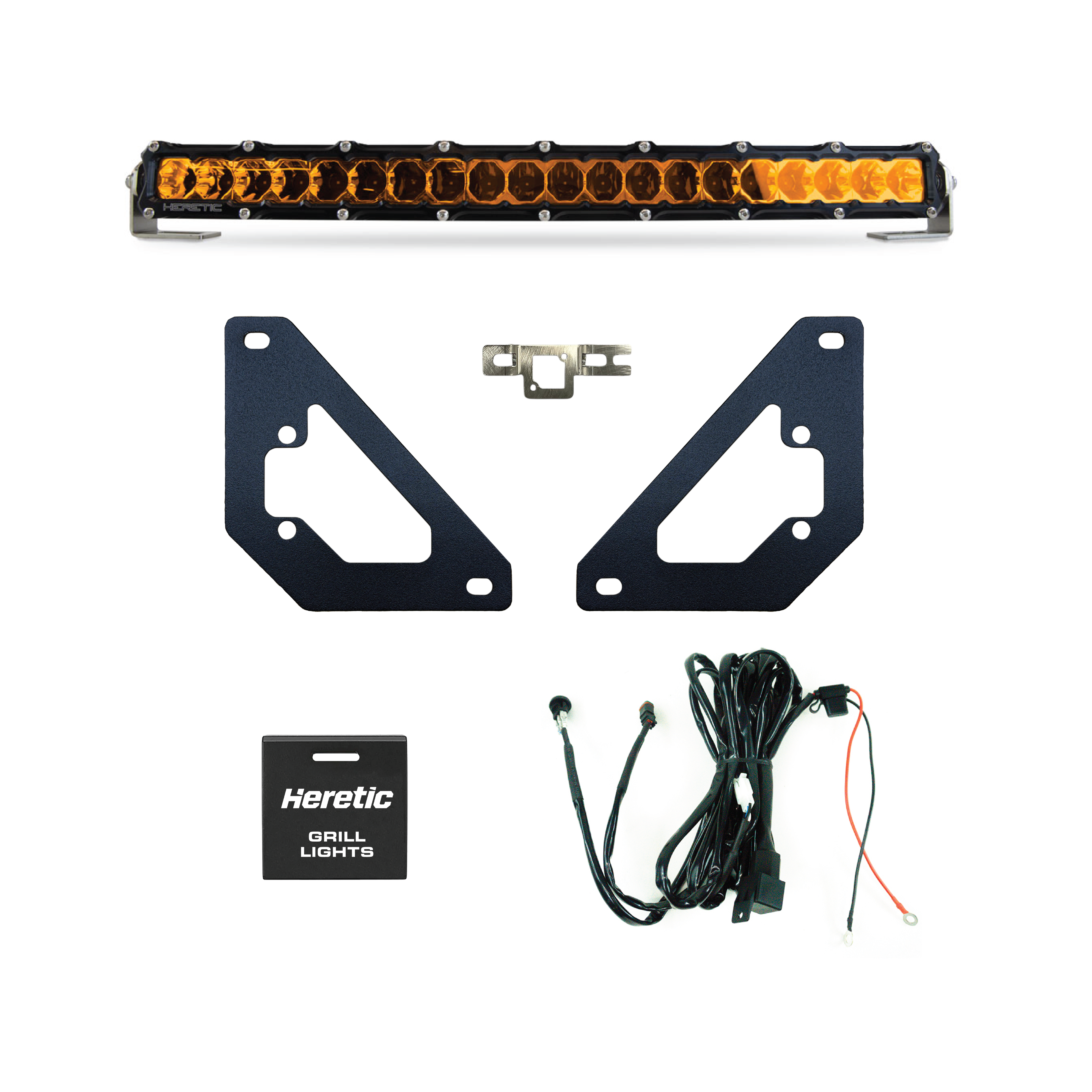

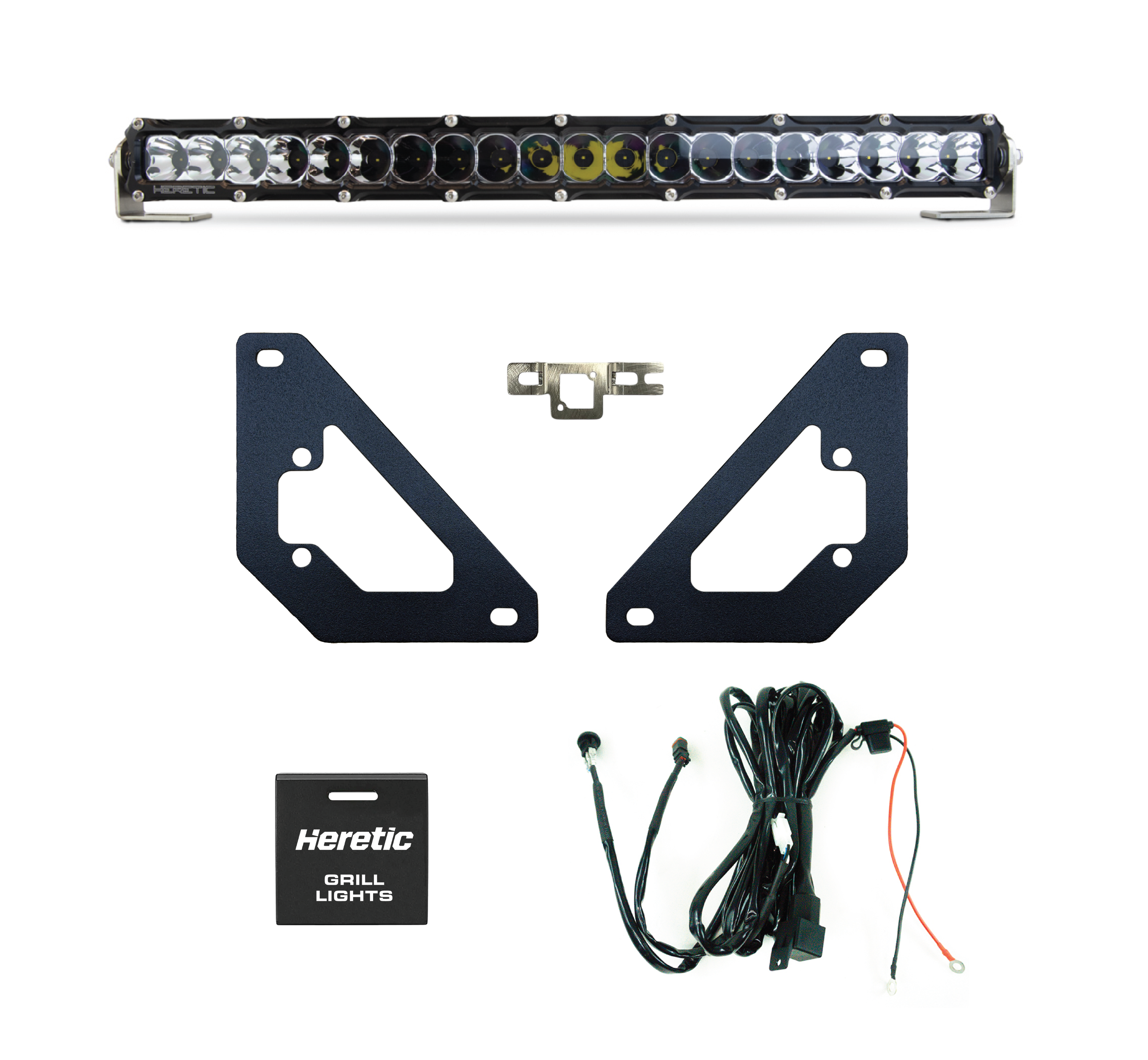

Kit contains:

• 20" light bar
• 5052 powder coated aluminum mounting brackets
• Camera bracket
• Wire harness
• Square dash switch


Specifications

• (20) 6-watt CREE LED
• Full 120 watts driven at 100%
• 14520 lumen
• 6061 billet housing
• 22 x 2 x 1.5
• I-P68 rated stainless steel mounts
• Weight 3 lbs
• Amp draw 11.3 Peak at 13.8V
• LUX at 10m: 4125
• Candella: 412500
