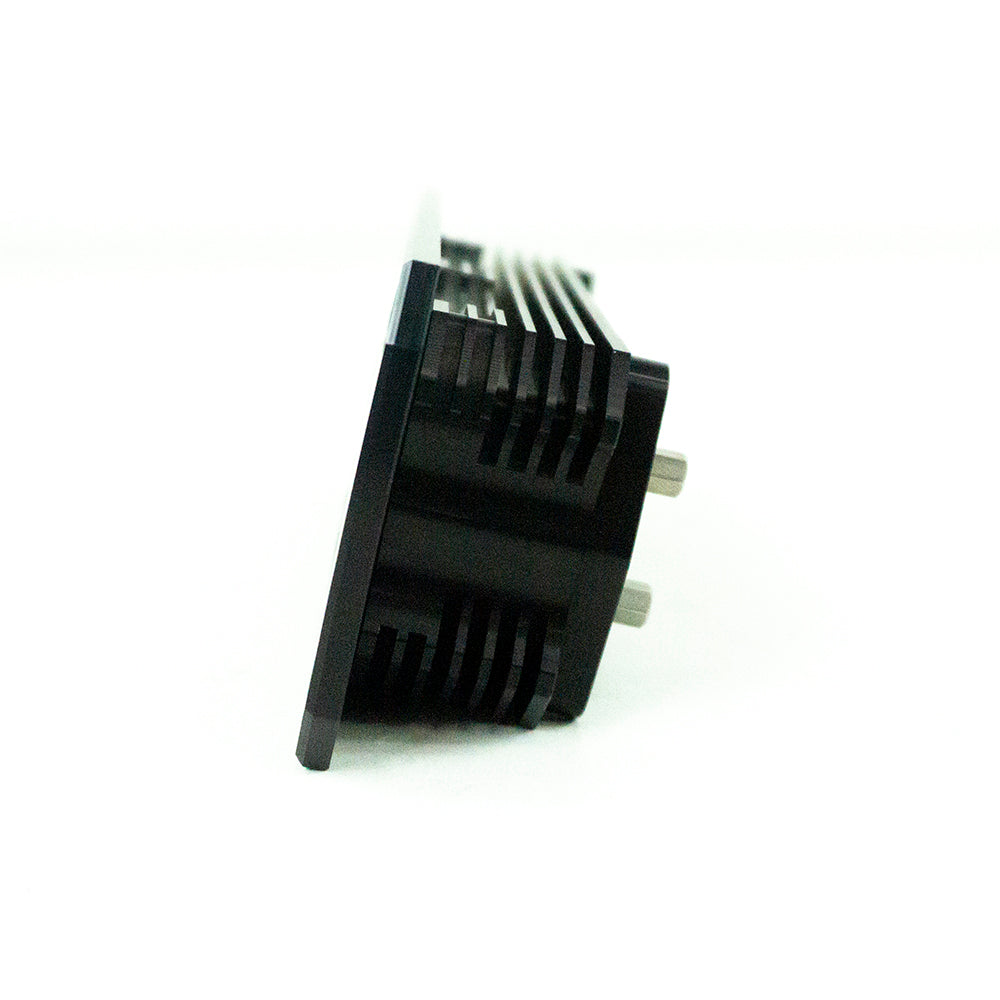

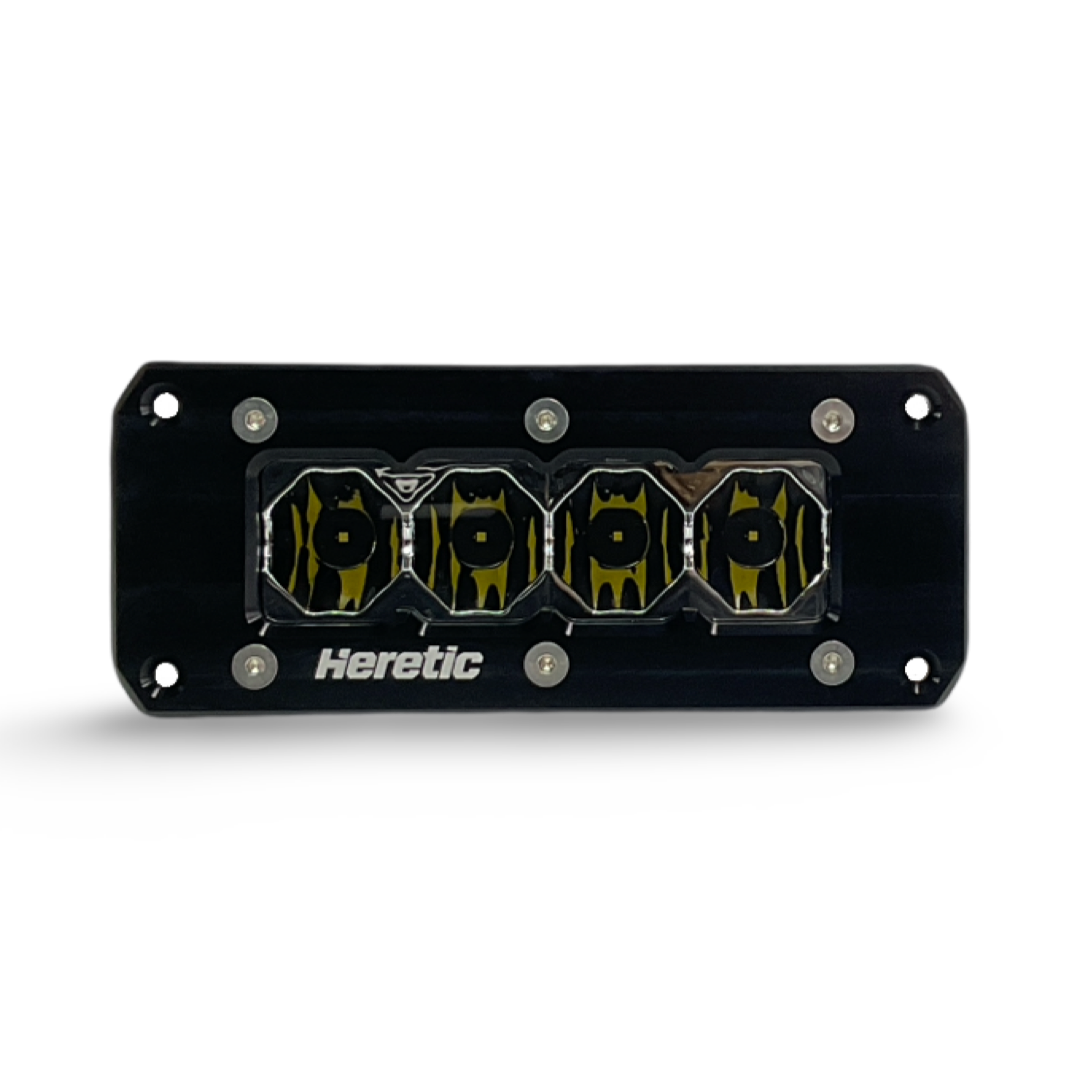

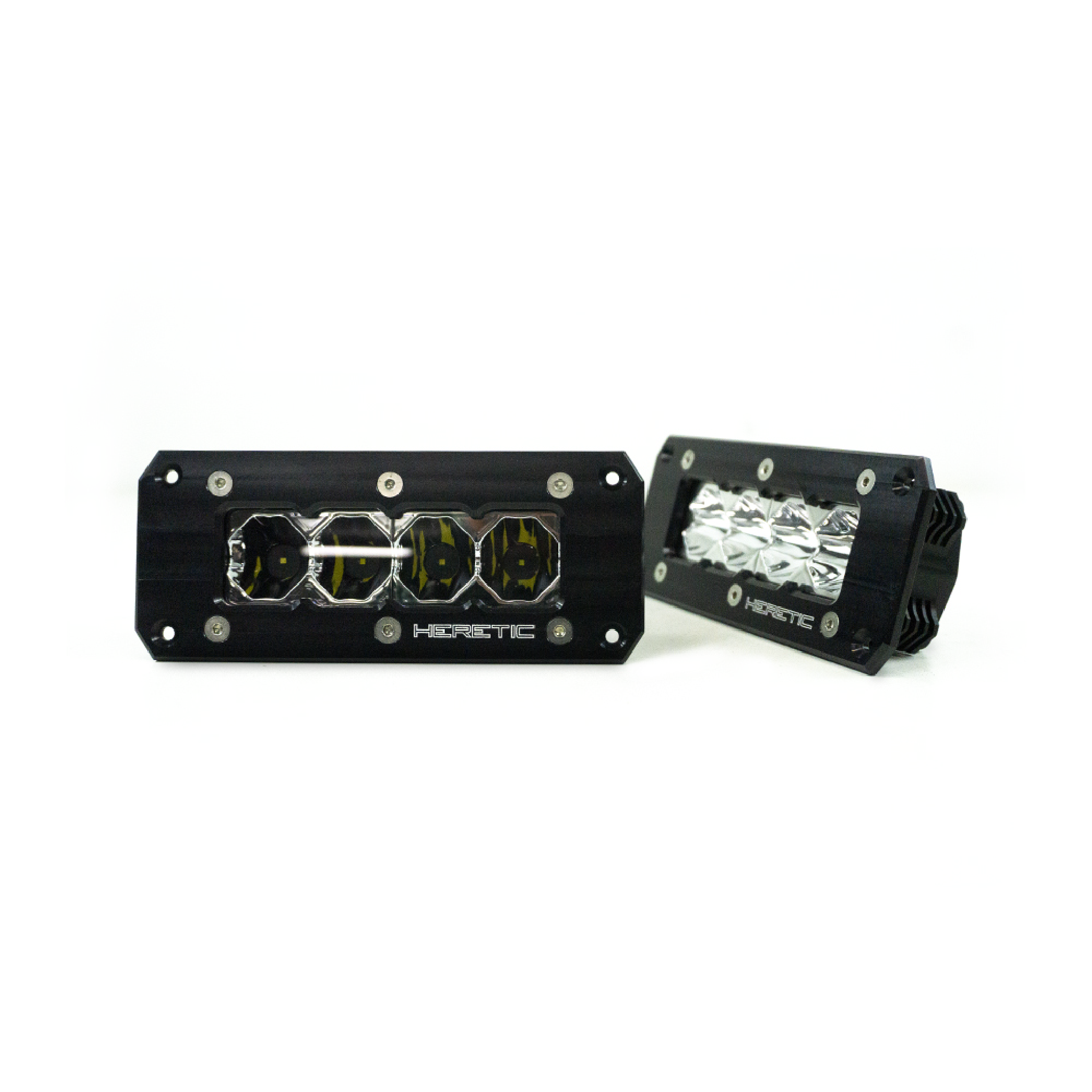

BA-4 Flush Mount LED Pod Light
studio shot ba-4 flush mount led pod light
studio shot ba-4 flush mount led pod light

Heretic Studio

BA-4 Flush Mount LED Pod Light

Sale price$169.99 USD
Beam Pattern:

Beam Pattern

Quantity:

Current lead time on some items is 3-8 weeks

Overview

The Heretic BA-4 Flush Mount LED Light Pod is known as the big brother to our staple BA-2 Flush Mount LED Light Pod. They are Designed, Assembled, Supported, and Shipped in Centerville, Utah. The 6-series BA-4 Flush Mount LED pod light is an optimal chase light to a ditch light, A-pillar light and beyond. These high performance clear LED pod lights are housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The BA-4 Flush Mount LED Light Pod is recommended on the front or rear bumpers of trucks, jeeps, SUVs, and UTVS. They can also be used on the sides and rear of roof racks as a chase light. They are specifically designed to align with the curvature of your vehicle or UTV and are best for clear night conditions. Customize your light by choosing the beam pattern, Flood, Spot, Or Combo.


Features

  • (1) BA-4 Flush Mount LED Light Pod
  • USA Patented 6061 CNC Aluminum Grade Billet Housing
  • (4) 6-watt CREE LED

Vehicle Application

Front Bumpers for both trucks and UTVs. Sides and rears of roof racks as scene lights. Can be used as chase lights for UTVs with an amber lens.

Parts Sold Separate

  • Wiring Harness
  • Aftermarket Mount for Roof Rack Attachment
  • Amber Lens Attachment

Details/Specs

    Shipping Weight: 4lbs
    Type: 4” LED Light Bar
    Housing: CNC Aircraft-Grade Aluminum
    Location:
    Light Color: White
    Lens Color: Clear
    Wattage: 24W
    Amp Draw at 13.8V: 2A
    Voltage: 9V-36V
    IP Rating: IP68
    DIM (Light Only): L 5” x D 1.5” x H 2”
    DIM (Light W/ Bracket): L 5” x D 2.1” x H “2.4
    Lumens: 3000 lm
    Lux At 10m:
    • Spot: 825 lx
    • Flood: 176 lx
    • Combo: 500 lx
    Candela:
    • Spot: 82500 cd
    • Flood: 17550 cd
    • Combo: 50025 cd
    Beam Distance:
    • Spot: 574 m
    • Flood: 265 m
    • Combo: 447 m
    DOT Compliant: No
    Prop 65: No
    SAE/ECE: No
