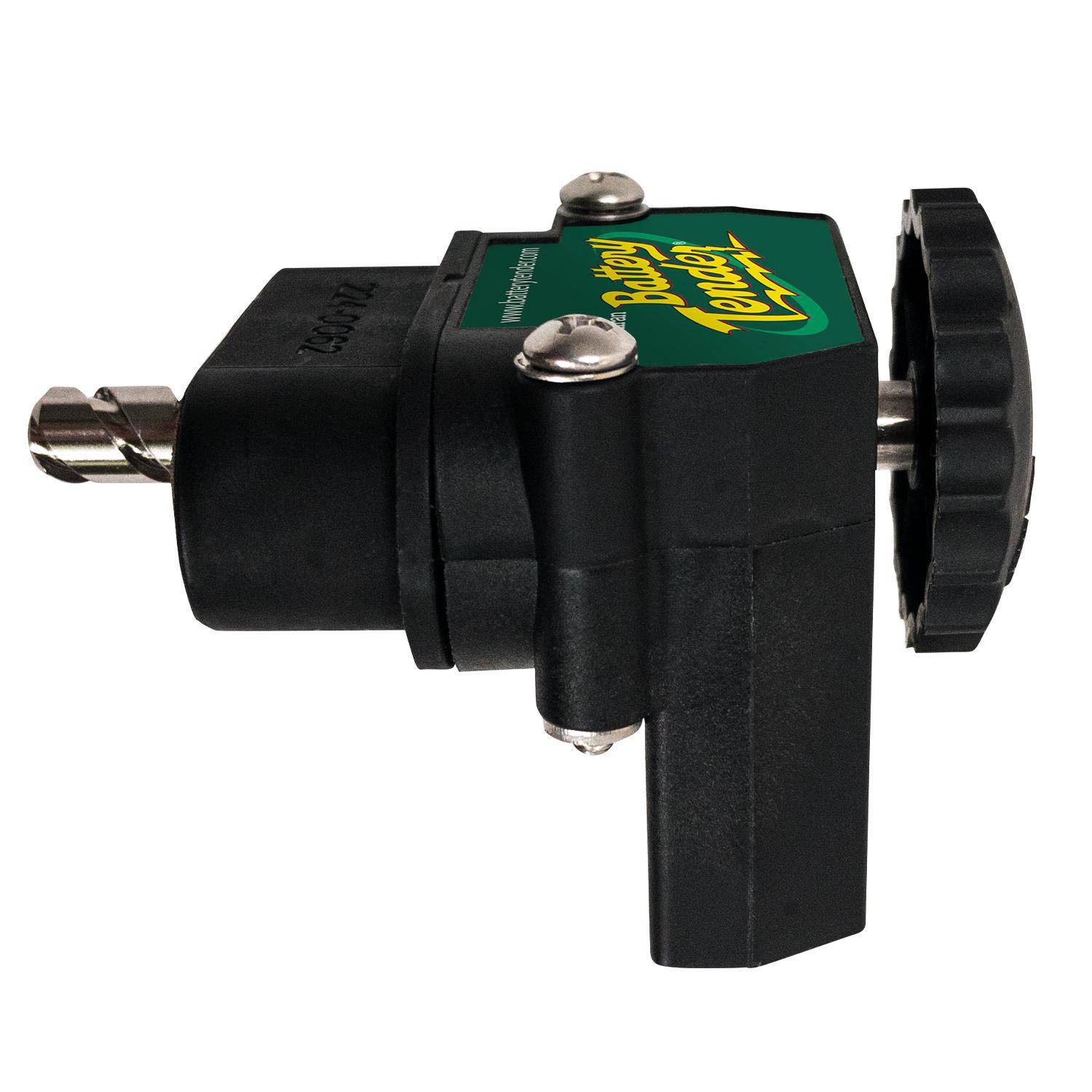

The Battery Tender® DC Power Connector L-Shape Plug is the portable half of the DC Power Connector system — the plug that connects to trolling motors, charger cables, electric reels, and any marine DC accessory requiring a secure, vibration-resistant, waterproof connection.
Plug Only — For Replacement or Multi-Accessory Installations
The L-Shape Plug is sold separately for installations requiring additional plugs beyond the single plug included in the DC Power Connector Kit (027-0004-KIT), or for replacing a plug on an existing accessory cable. One receptacle mounted on the vessel can accept any number of compatible plugs — one for the trolling motor, one for the charger output, one for the electronics panel — with the same secure screw-lock connection every time.
Marine-Grade Construction
Silver-plated solid copper alloy contacts deliver consistent low-resistance connections across thousands of connection cycles. UV-protected glass-reinforced thermoplastic housing withstands sun, salt air, and impact. Stainless steel hardware throughout. The unique screw-and-lock mechanism provides a positive, vibration-resistant connection that resists loosening from engine vibration, hull impact, and rough water conditions.
Specifications
- Voltage range: 12V – 48V DC
- Current rating: 80 Amp continuous (UL) / 40 Amp continuous (CSA) with 6 AWG wiring
- Contacts: Silver-plated solid copper alloy
- Housing: UV-protected glass-reinforced thermoplastic
- Hardware: Stainless steel throughout
- Dimensions: 3.1" D × 1.9" H × 2.3" W
- Compatible receptacle: DC Power Connector Receptacle (224-0061-BK)
- Complete kit with plug and receptacle: DC Power Connector Kit (027-0004-KIT)
Applications
- Trolling motor cables on 12V, 24V, 36V, and 48V systems
- Onboard battery charger output connections
- Electric reels, downriggers, and marine DC accessories
- Replacement plug for existing DC Power Connector installations
1-Year Limited Warranty | DeLand, Florida Since 1965
