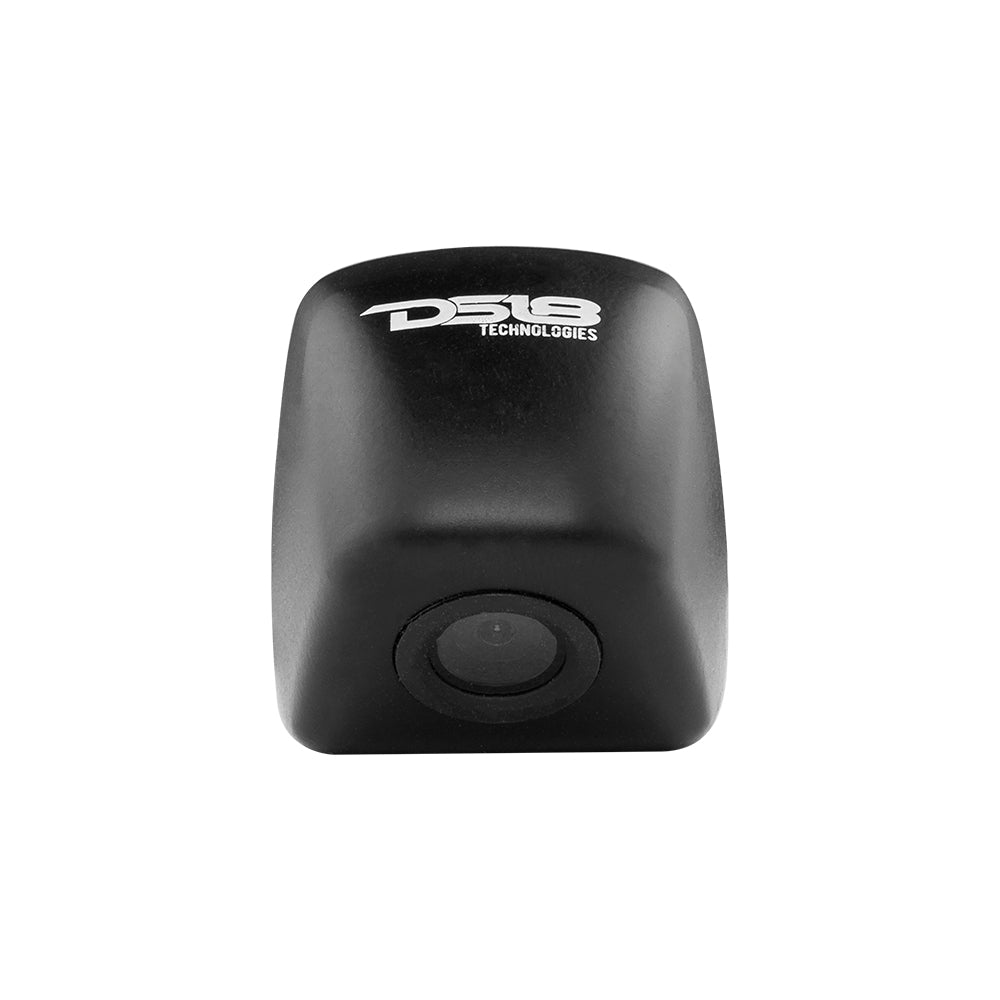

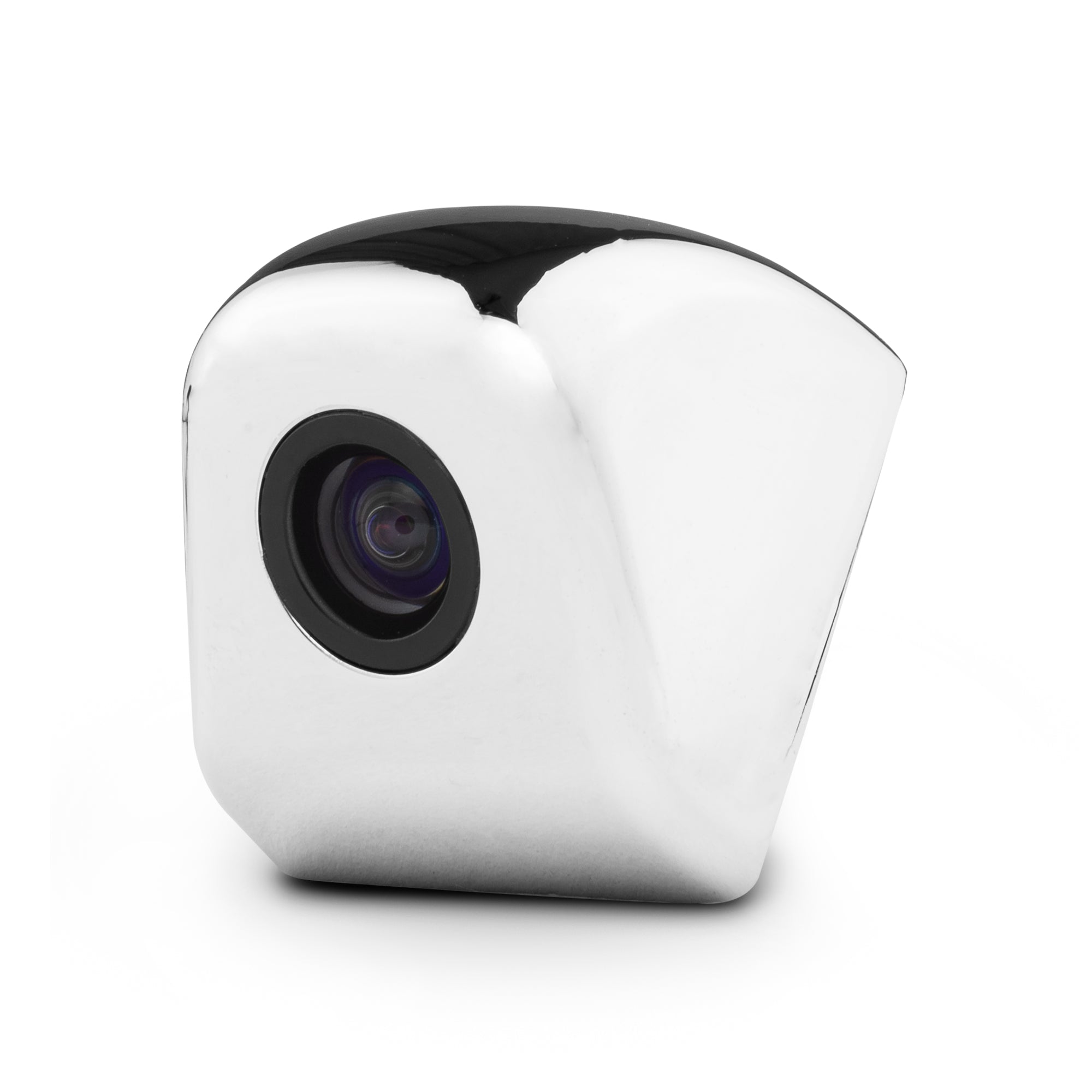

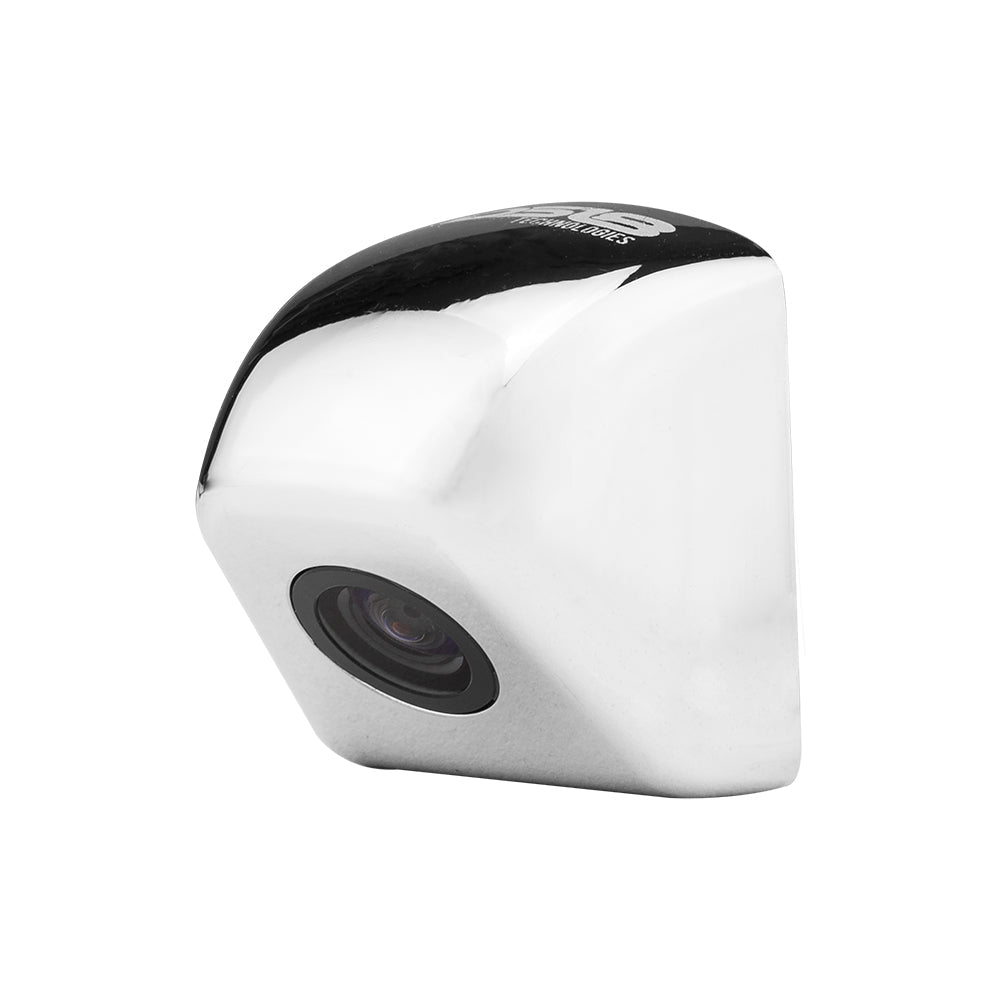

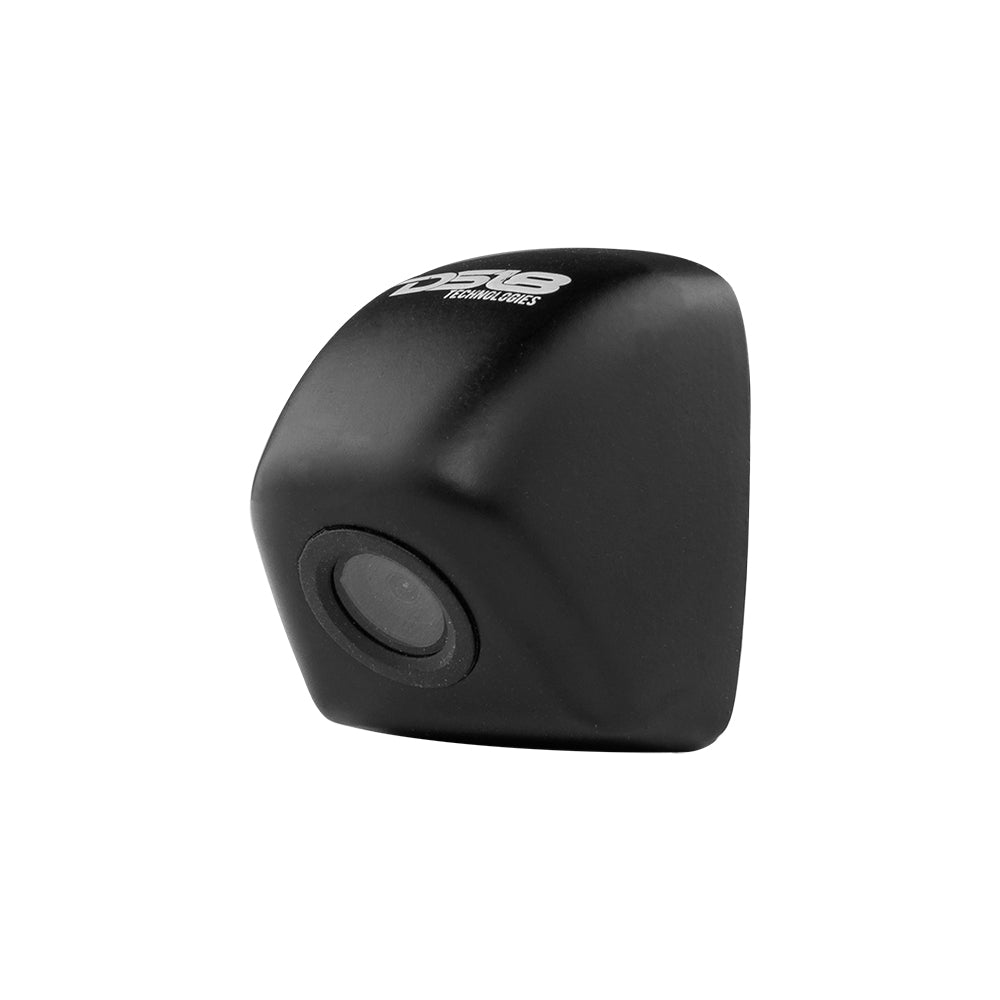

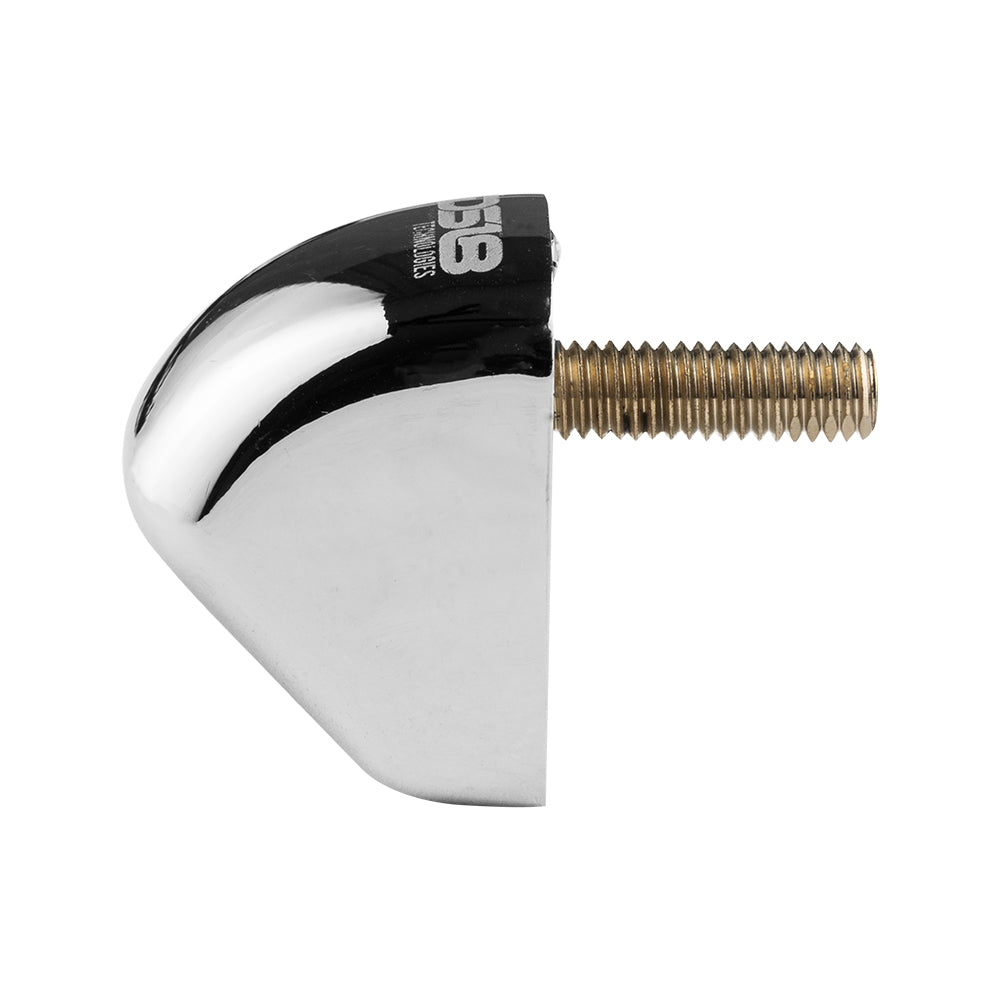

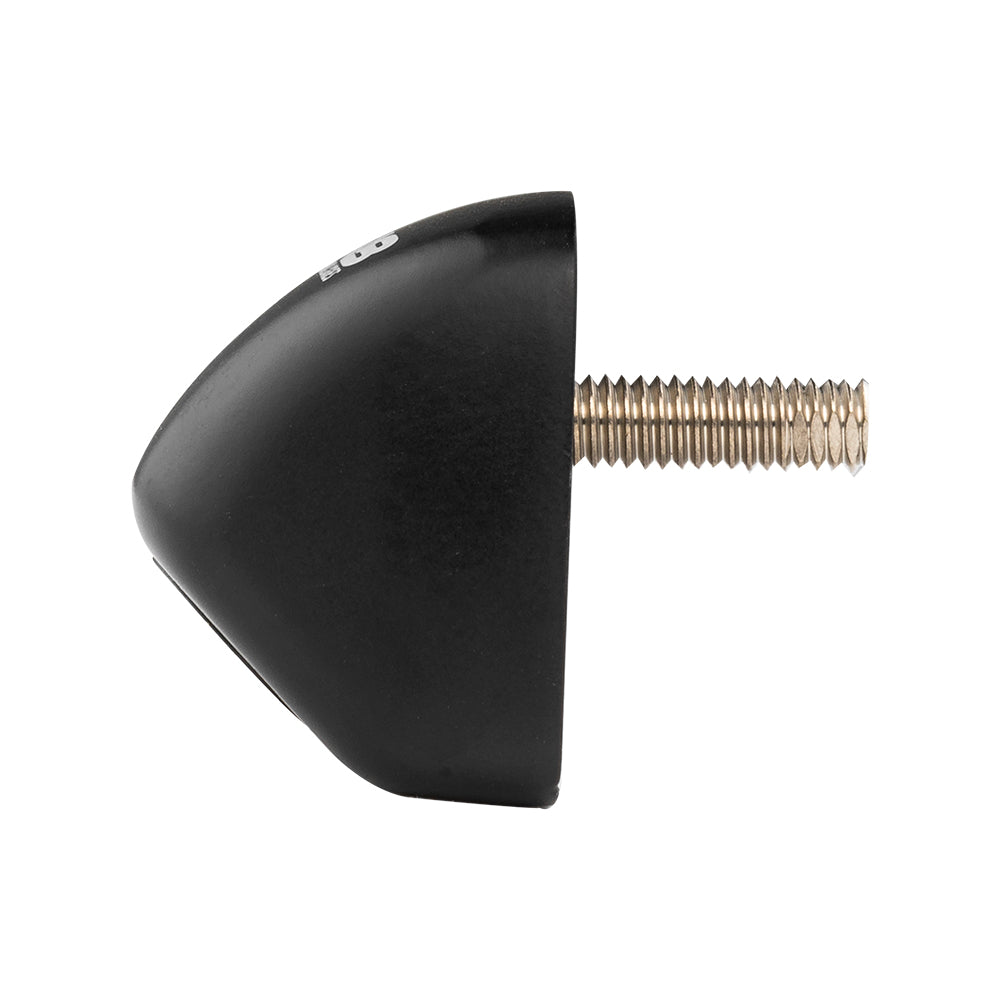

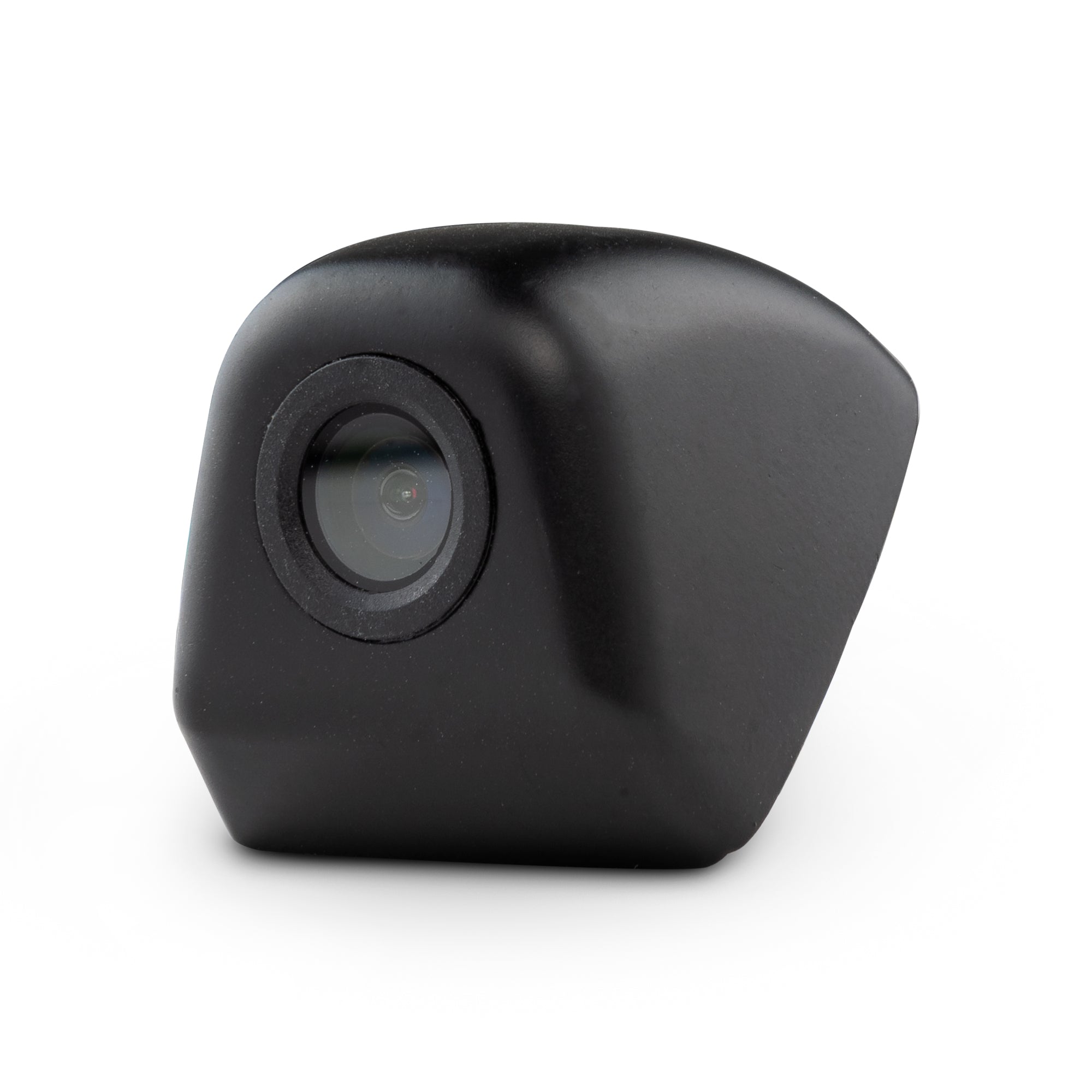

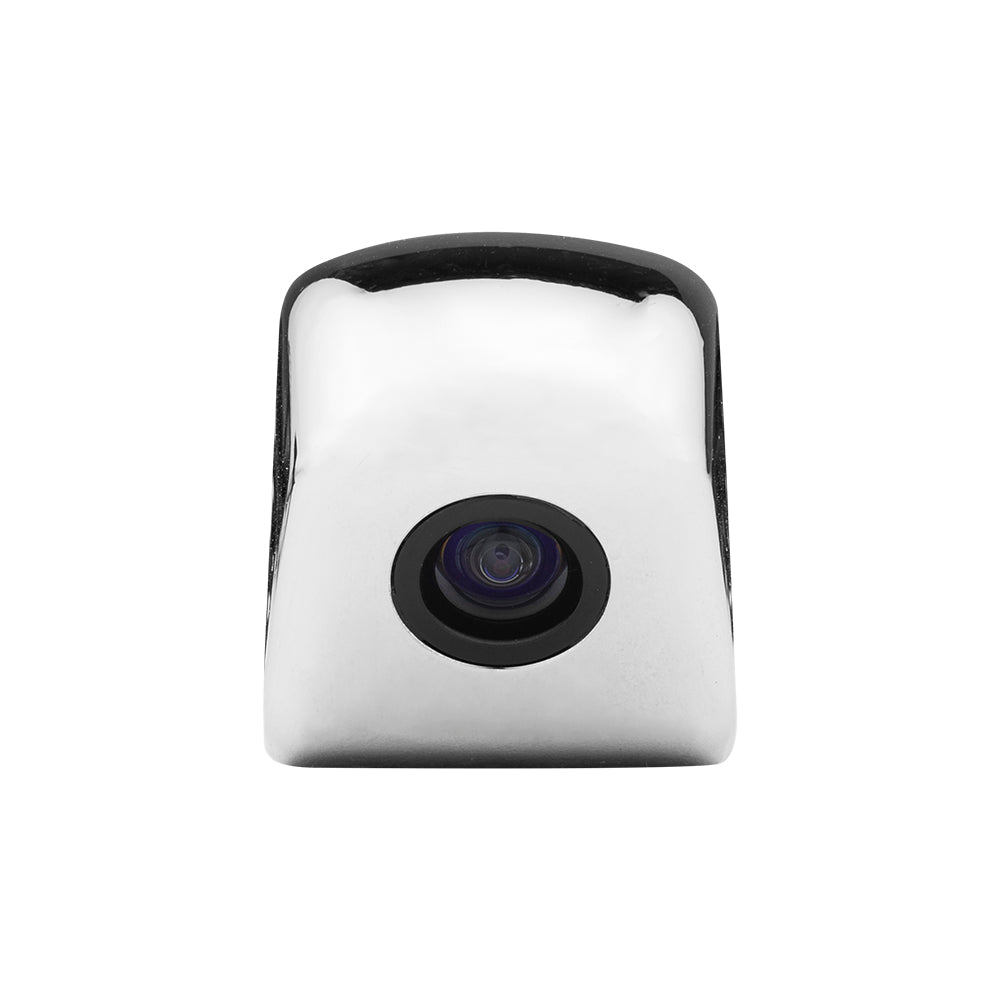

DS18 RCD20 Reverse Camera with Night Vision
Color:
Color
Choose options
Color:
Color
Color:
Color
drivers ass
Technical Details
| With customer safety in mind, DS18 cameras and reverse sensors are manufactured with the most up-to-date parts in the industry. Engineered and designed in the United States our cameras have crystal clear night vision and are tested to work in the harshest environment. |
Technical Details
| Operation Temperature: | -10°- + 46°C (RH95% Max) |
| TV System: | NTSC |
| Distance Scale Line: | 6-9M |
| Effective Pixels: | NTSC: 648 x 488 pixels |
| Sensing Area: | 5.55µm x 5.55µm |
| Horizontal Resolution: | 420 TV Lines |
| Dimension: | 24 x 25 x 21.6mm |
| Lens Angle: | 135° |
| Minimum Illumination: | 1.5 lux /F1.2 |
| Electronic Shutter Time: | 1/60th - 1/15000th seconds |
| S/N ratio: | >48 |
| Video Output: | CCIR/EIA(PAL/NTSC) Standard video Signal 1.0 Vp-p, 75 ohm |
| Sync System: | Internal Synchronization |
| Power Supply: | 12V |
