EXL XX 12" High Excursion Subwoofer 2000 Watts Rms DVC 2-Ohm
EXL XX 12" High Excursion Subwoofer 2000 Watts Rms DVC 2-Ohm
EXL XX 12" High Excursion Subwoofer 2000 Watts Rms DVC 2-Ohm
EXL XX 12" High Excursion Subwoofer 2000 Watts Rms DVC 2-Ohm
EXL XX 12" High Excursion Subwoofer 2000 Watts Rms DVC 2-Ohm
EXL XX 12" High Excursion Subwoofer 2000 Watts Rms DVC 2-Ohm

DS18

EXL XX 12" High Excursion Subwoofer 2000 Watts Rms DVC 2-Ohm

Sale price$539.95 USD
Quantity:

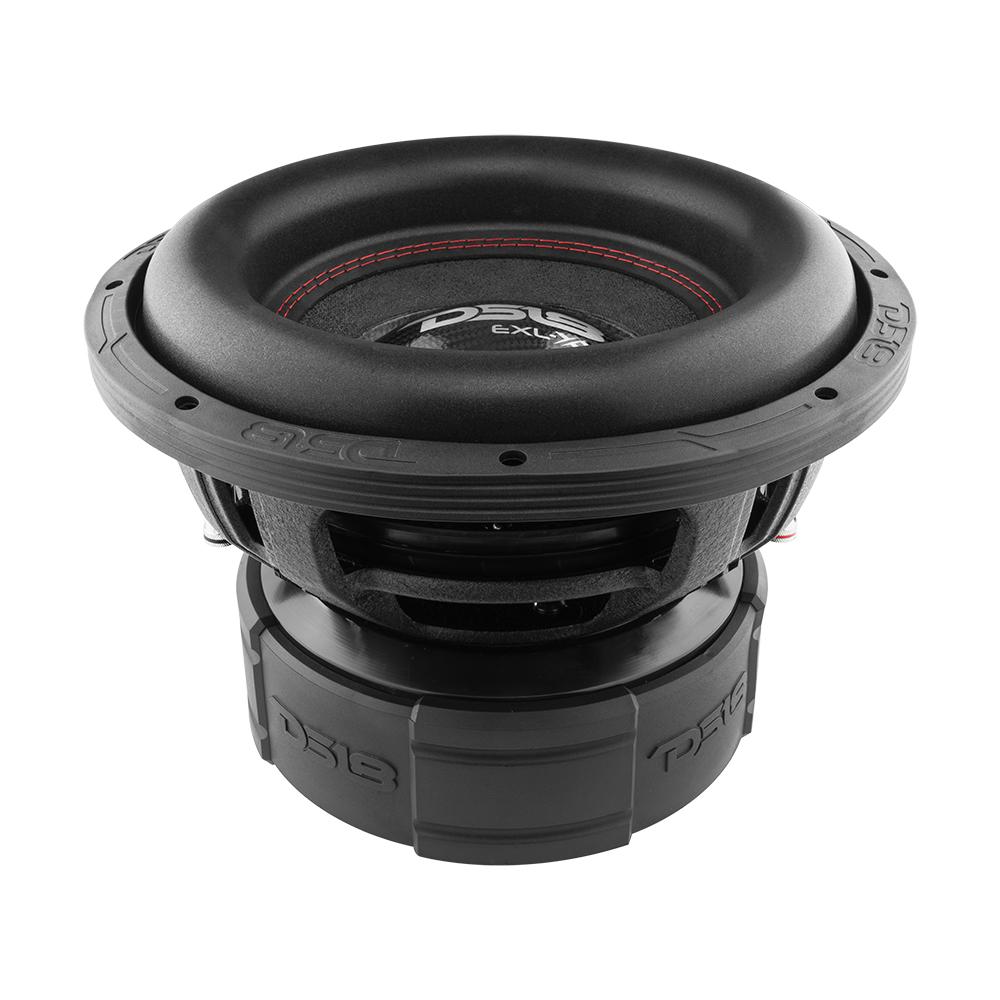

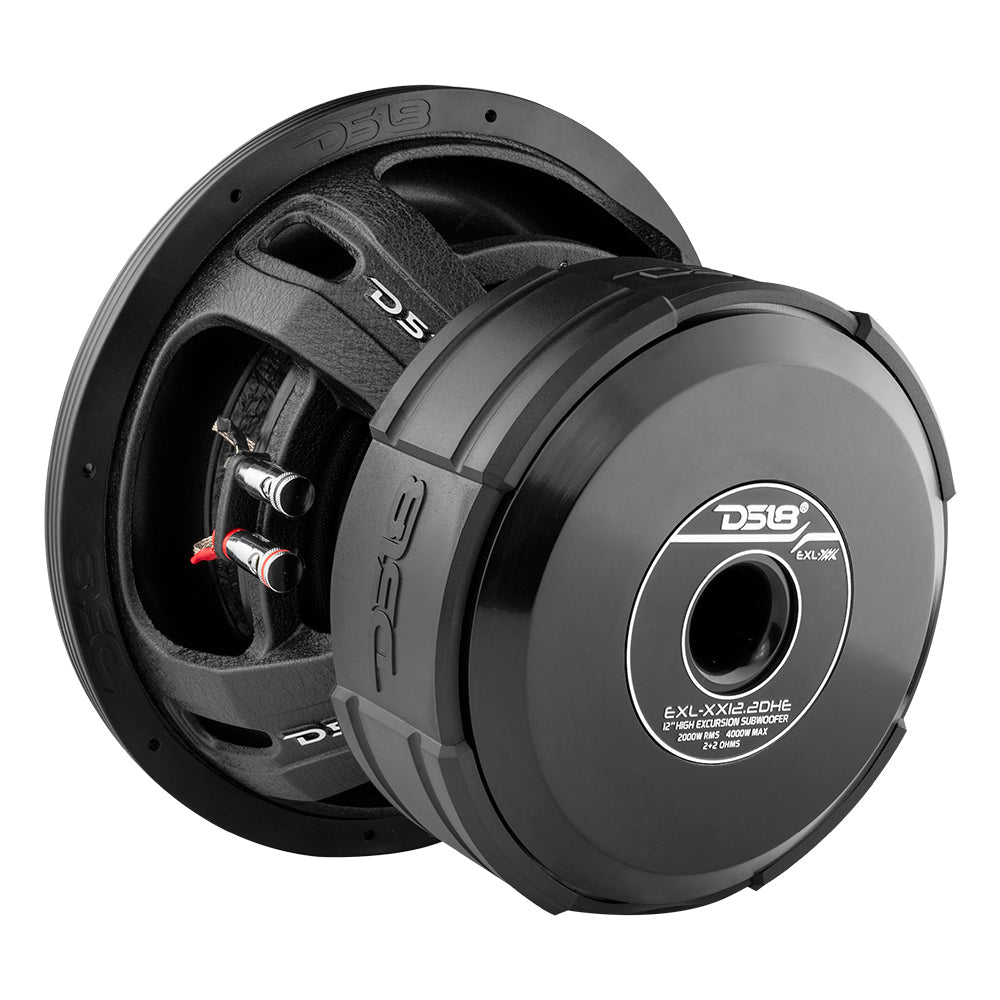

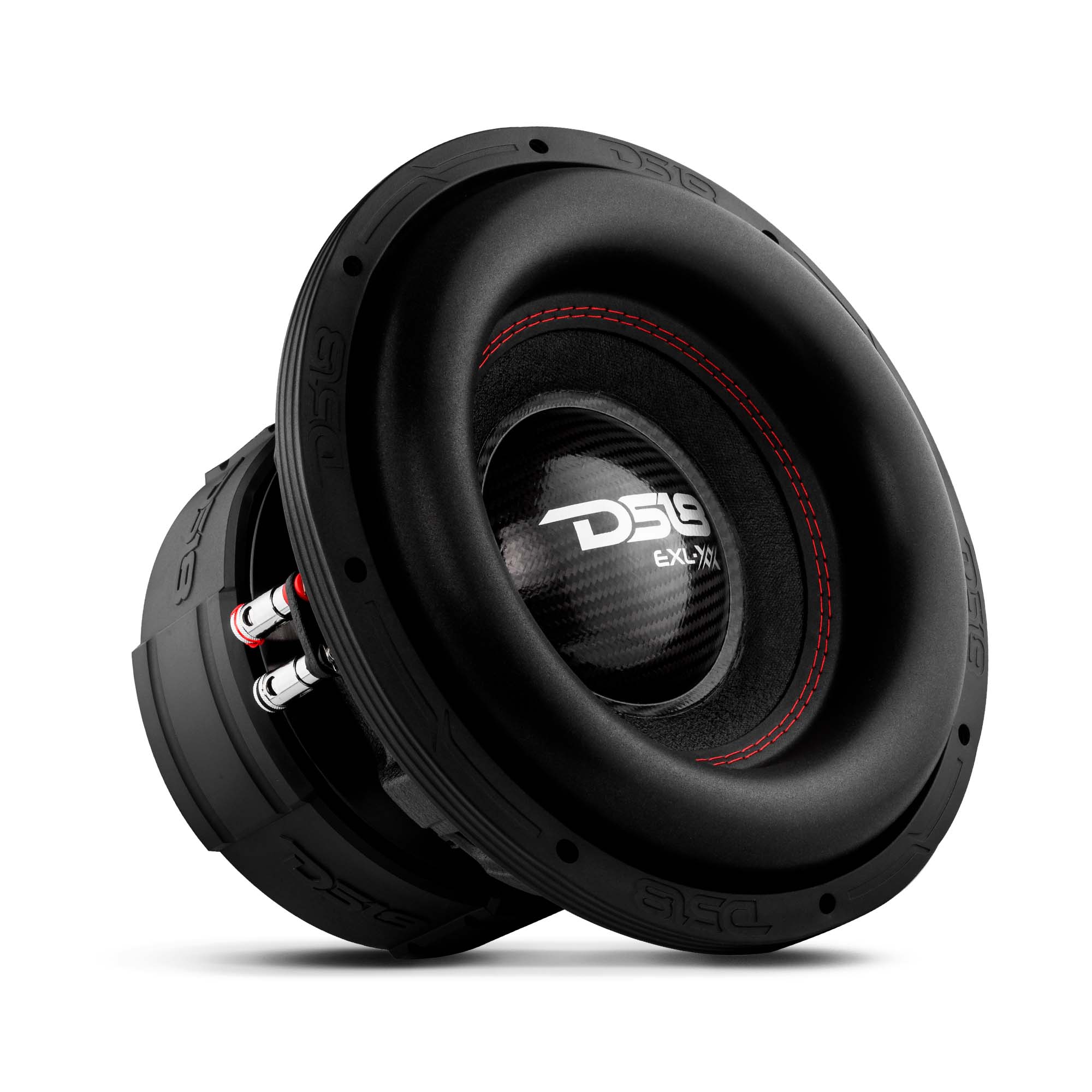

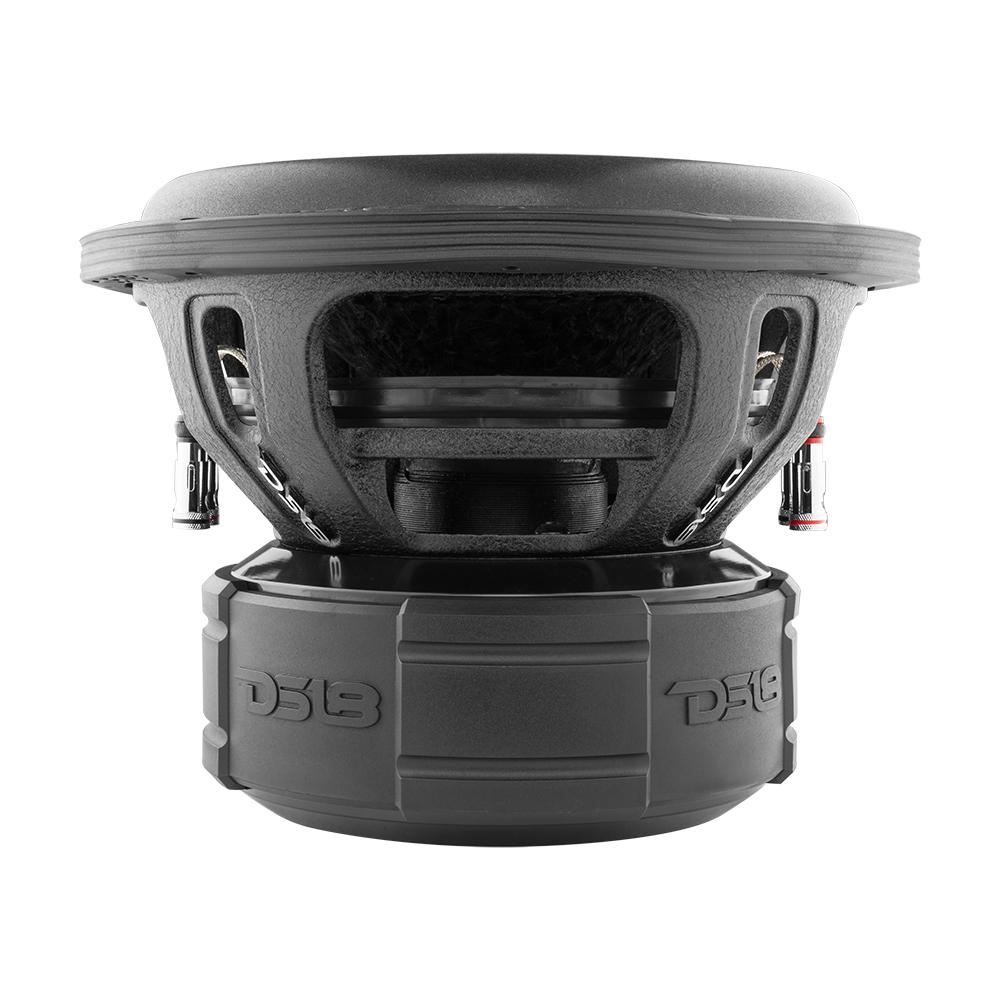

DS18 EXL-XX12.2DHE 12" High Excursion Car Subwoofer 4000 Watts Max 2-Ohm DVC.

High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX12.2DHE is the answer to that. This subwoofer is a high tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.
Also, with a power rating of 2000w RMS and 4000w Max, with the right power this sub will have increased excursion, decibels, and loudness altogether for a real competition bass experience.

Highlights

  • High Excursion surround for a very high amount of xmax.
  • Great power handling of 2000w RMS and 4000w Max.
  • Three inch black aluminum voice coil for high power handling and great efficiency.
  • FS of 39 Hz so you can easily dip in the subsonic range with no issues along as your box is tuned accordingly.

high excursion car subwoofer

high excursion car subwoofer

high excursion car subwoofer

high excursion car subwoofer

    Technical Details
                                                       EXL-XX12.2DHE Product Manual
    Specifications
    Nominal Diameter 12
    Nominal Impedance 2 + 2 Ohms
    RMS Power Handling 2000W
    MAX Power Handling 4000W
    Sensitivity (1w/1m) 87 dB
    Frequency Response 20Hz - 1.3KHz
    Recommended Lo Pass Crossover 80 Hz
    Motor:
    VC Diameter 3"/ 75.6mm
    VC Former Material Black Aluminum
    Winding Material CCAW
    Cone Material Paper
    Dust Cap Material Glass Fiber
    Surround Material Foam
    Basket Material Aluminum
    Basket Color/Finish Black
    Magnet Material Ferrite
    Magnet Weight 306 Oz
    Displacement Volume 3.26L
    Thiele & Small Parameters
    Equivalent Vol Vas 21.986L
    Excursion(one way) Xmax 42 mm
    Free Air Resonance Fs 39.8 Hz
    Mechanical Factor Qms 5.128
    Electrical Factor Qes 0.529
    Total Factor Qts 0.468
    Moving Mass Mms 302.158 g
    Compliance Cms 0.025 mm/N
    Bl Factor BL 16.523
    VC Inductance Le 6.9 mH
    Diaphragm Area Sd 433.74 cm²
    Dc Resistance Re 2 + 2 ohms
    Efficiency Bandwidth Product EBP 75.2

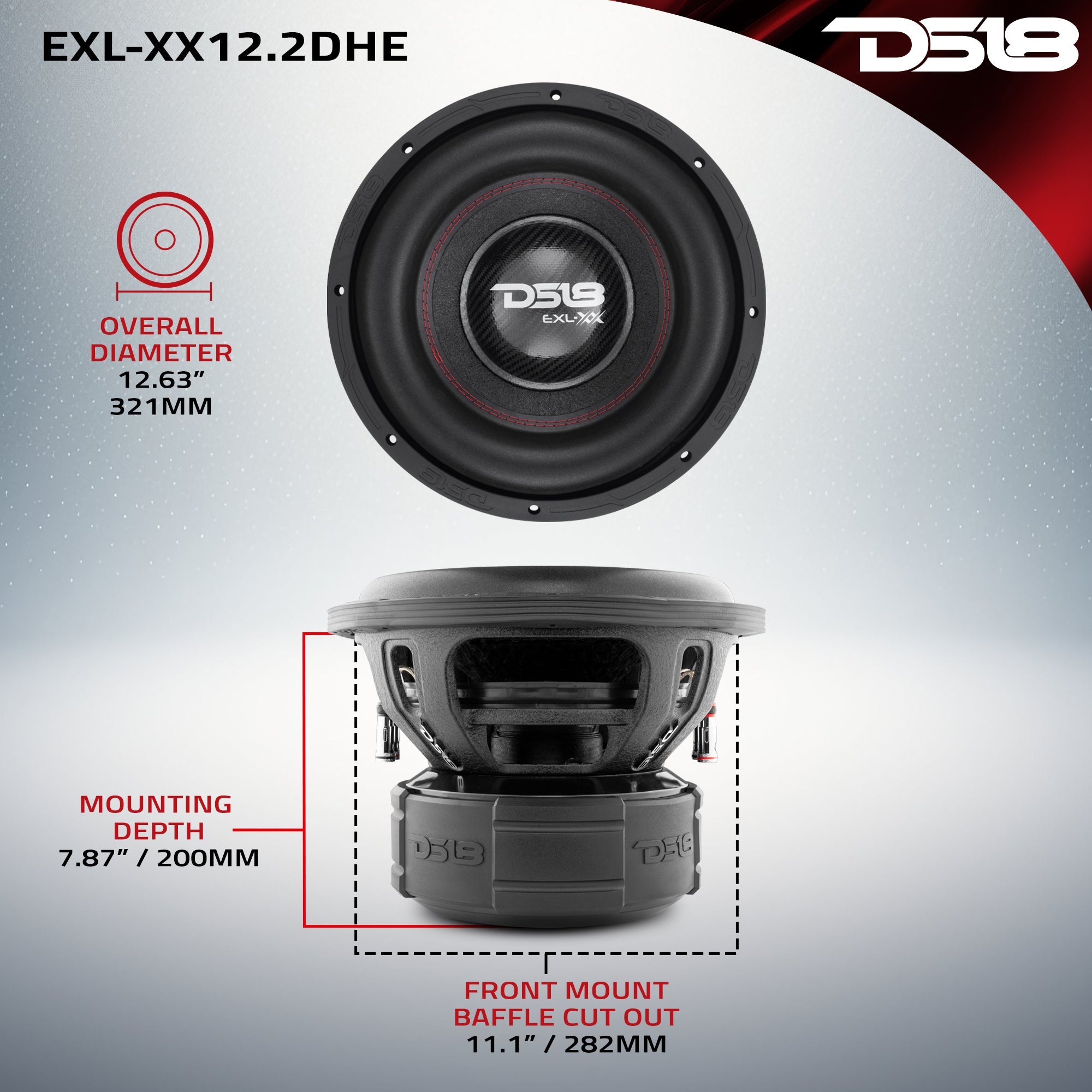

    Measurements
    Overall Diameter 12.6" / 321mm
    Overall Depth 9.25" /235mm
    Front Mount Baffle Cutout 11.1" / 282mm
    Mounting Depth 7.87" / 200mm
    Motor Diameter 8.89" / 226mm
