Ford F-250 and 350 (2020-2022) - 40" Curved LED Bumper Light Bar

Overview

The Heretic 40" Curved LED light bar is a beast of a light when it comes to LED light bars. They truly turn darkness into light. These high performance 6-series curved clear LED light bars are designed and assembled in the USA. CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. Customize your light by choosing the beam pattern, Flood, Spot, Or Combo.

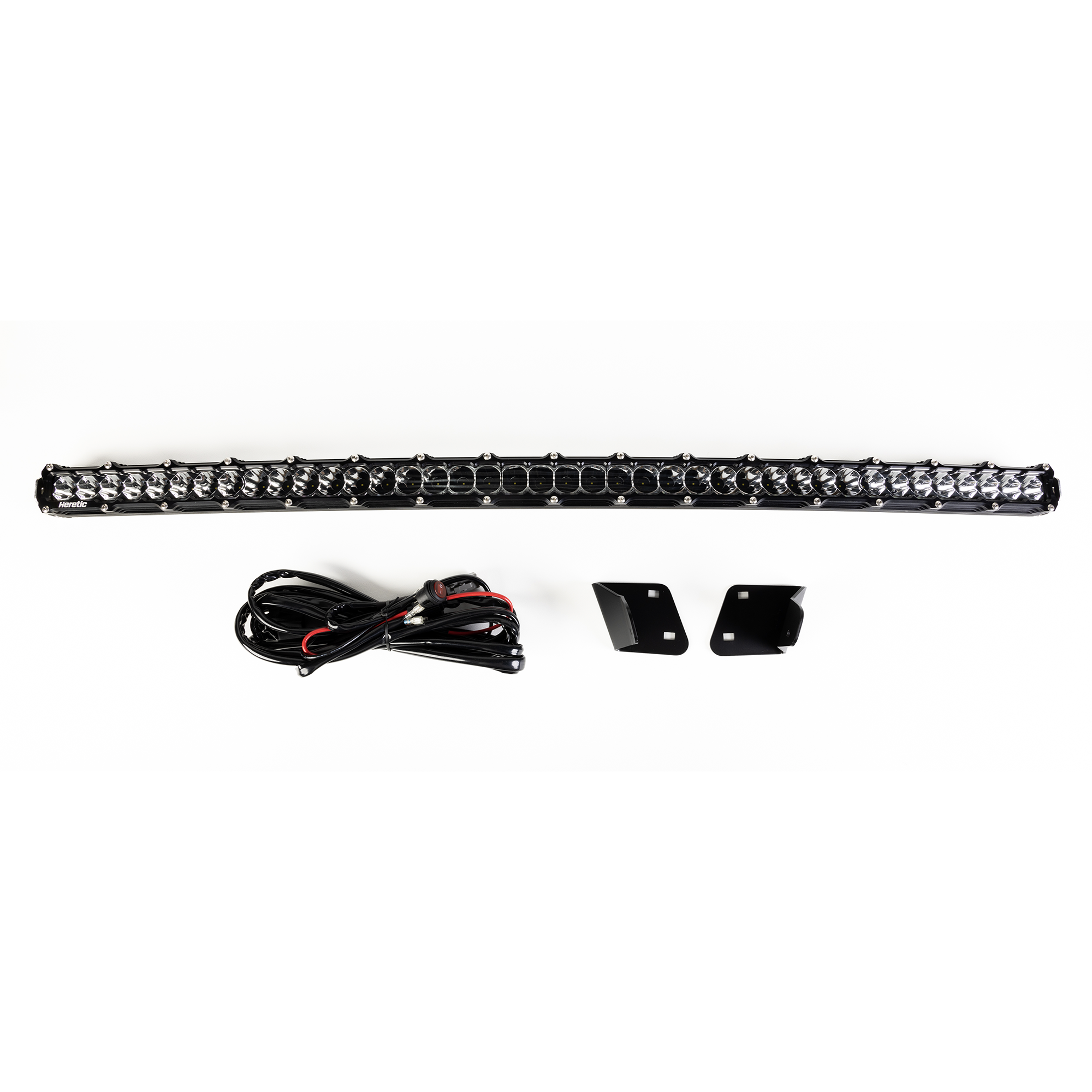

Kit Includes

• Curved 40in bar
• Wire Harness

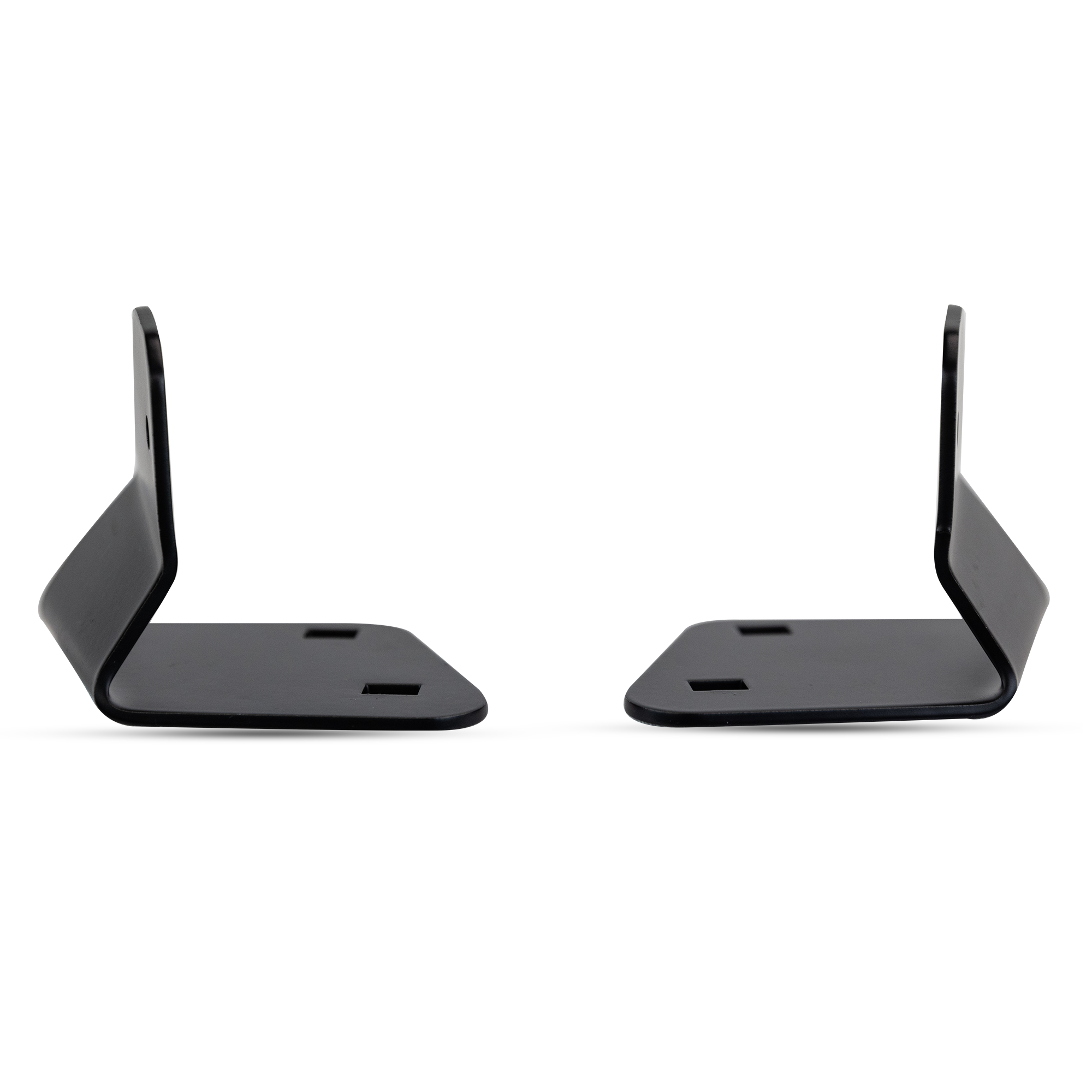

• Stainless Steel powder coated brackets
• Hardware

Install Guide

Vehicle Trim Compatibility

Ford F-250 ('20-'22)

Ford F-350 ('20-'22)

Specifications

Shipping Weight: 8lbs
Type: 40” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Clear
Wattage: 240W
Amp Draw at 13.8V: 25.4A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 41” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 42” x D 1.5” x H “2.4
Lumens: 29040 lm
Lux At 10m:

• Spot: 8250 lx
• Flood: 1755 lx
• Combo: 5652 lx

Candela:

• Spot: 825000 cd
• Flood: 1175500 cd
• Combo: 565200 cd

Beam Distance:

• Spot: 1817 m
• Flood: 838 m
• Combo: 1504 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No
