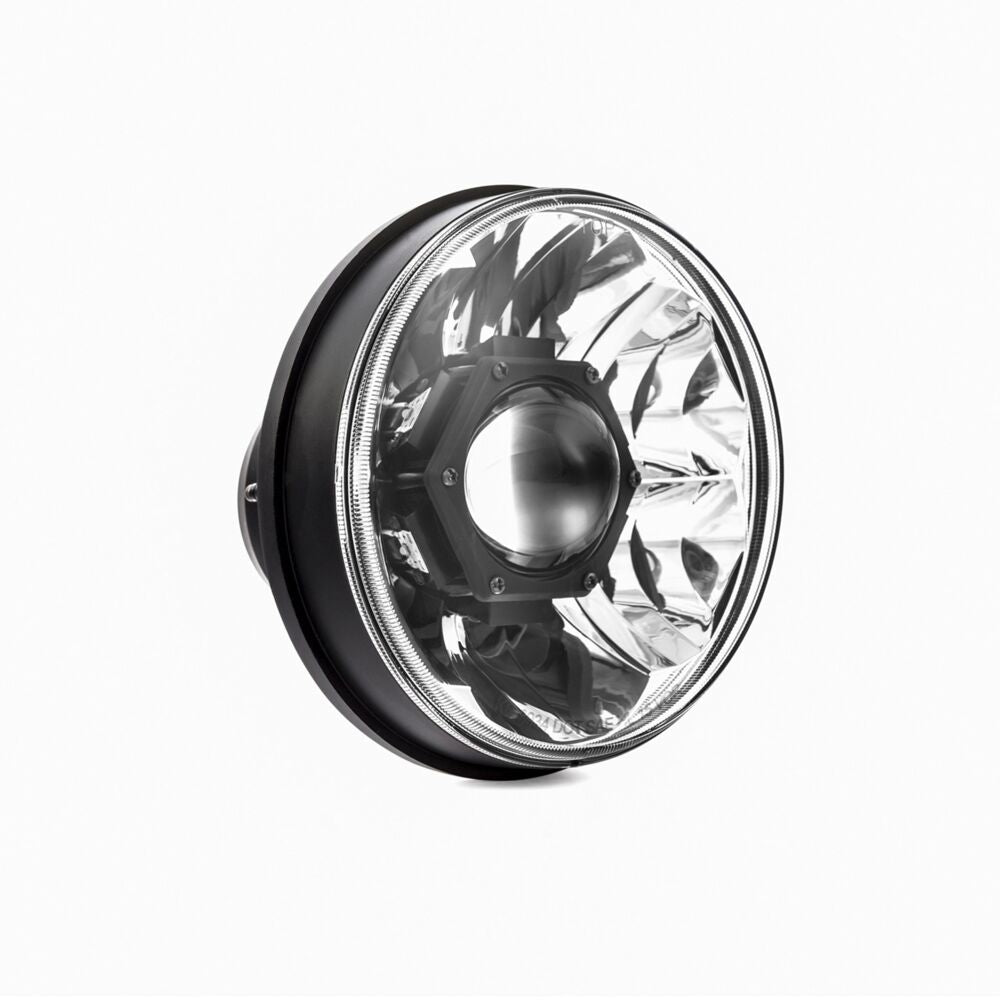

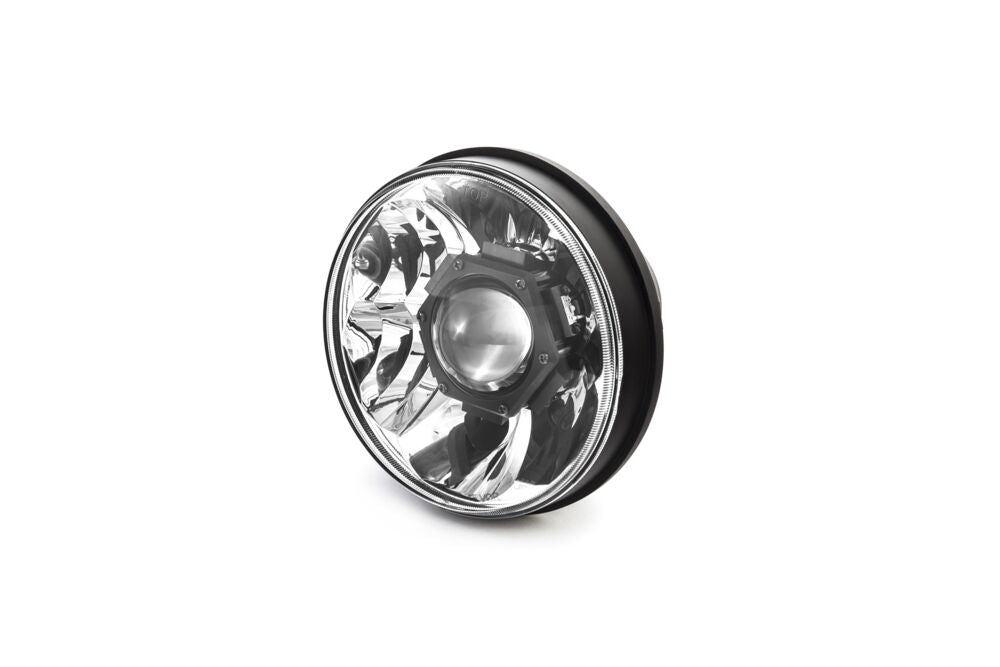

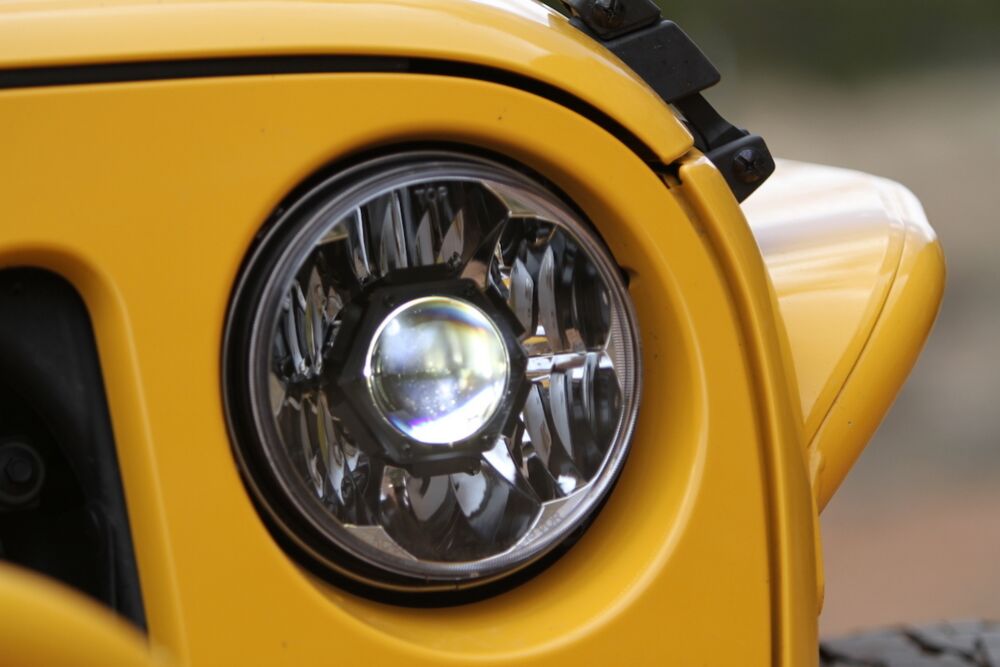

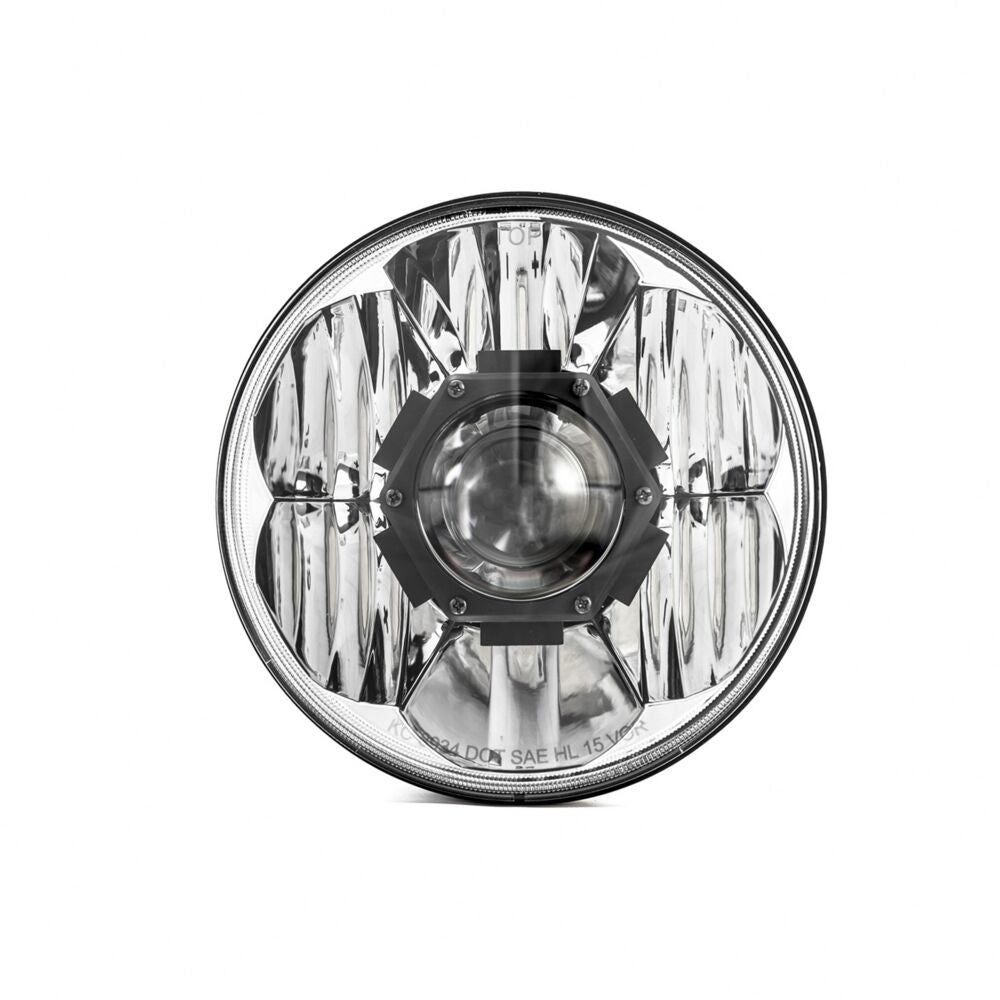

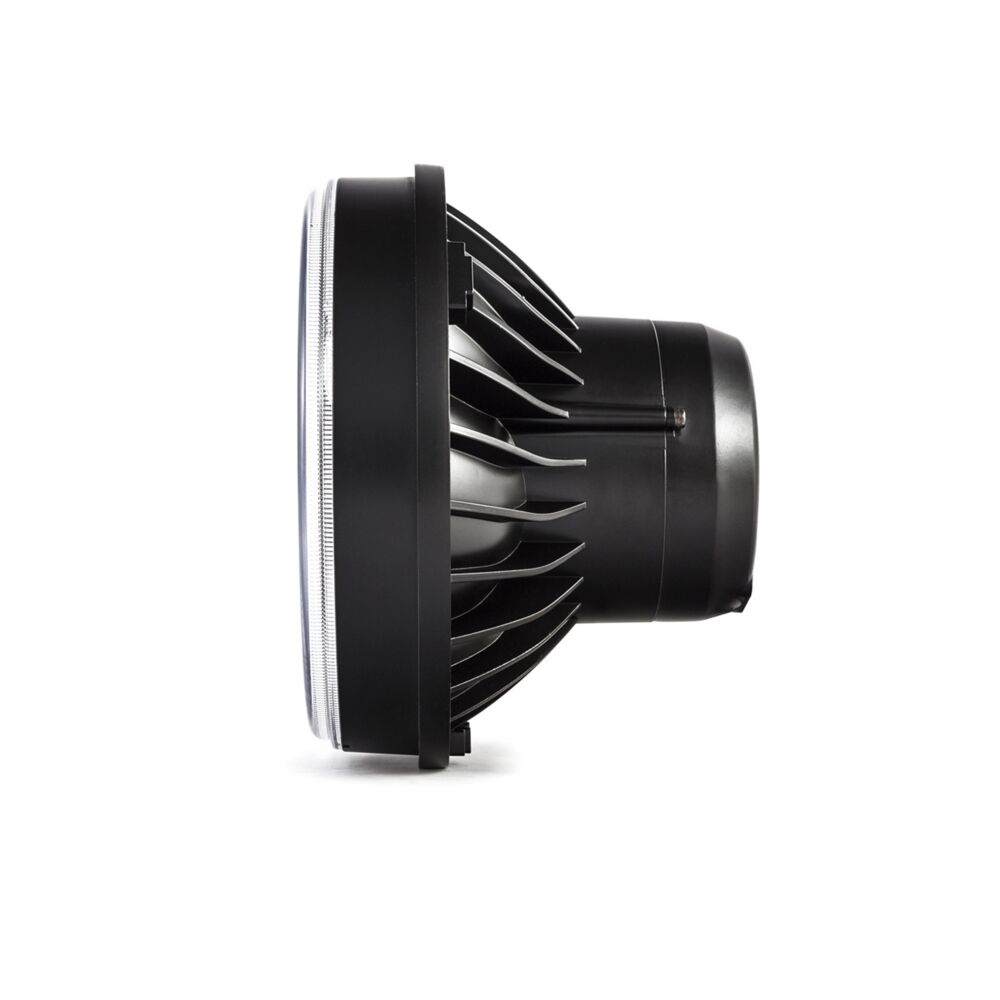

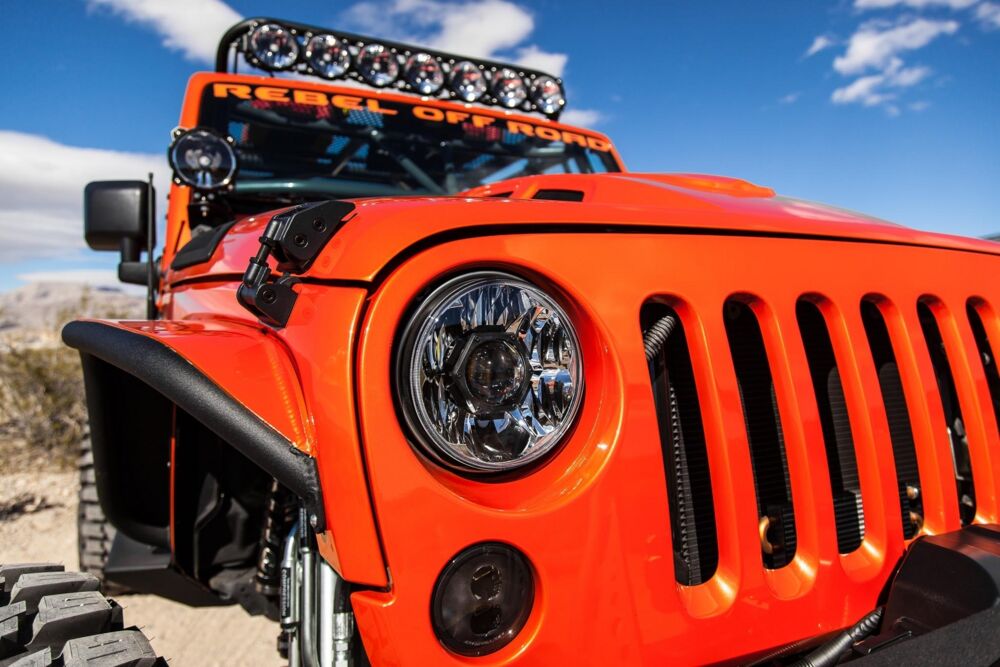

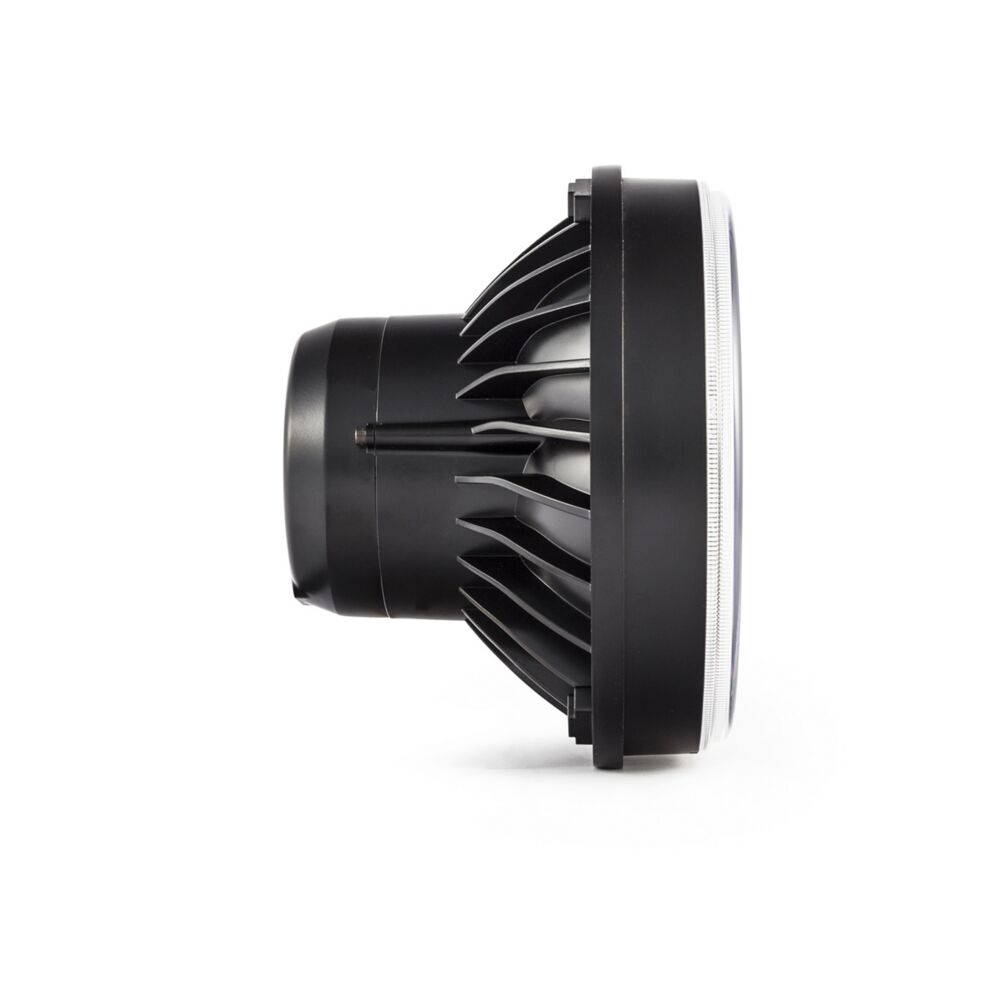

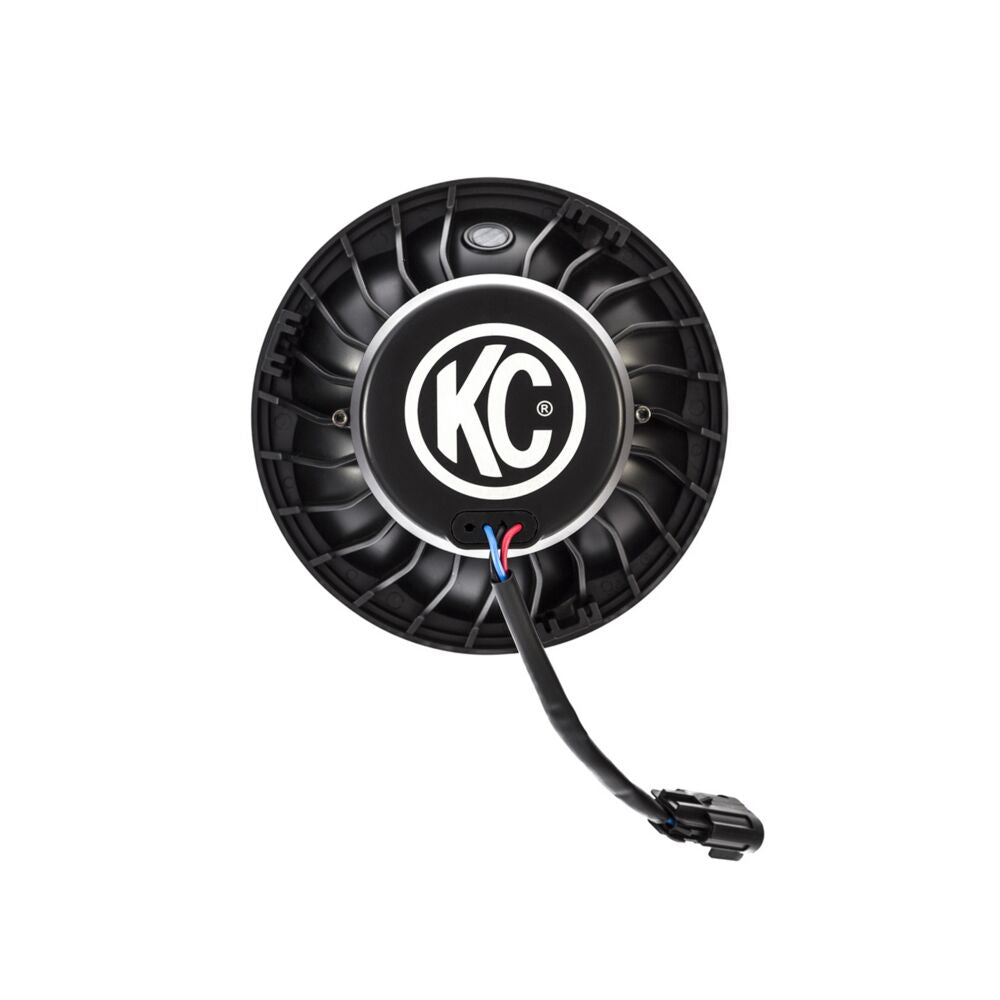

7" Gravity® LED Pro DOT Headlight - Driving Beam - Single - Universal / 07-18 Jeep JK - # 4234
Quantity:
Choose options
Quantity:
FEATURES
-40W Patented Gravity Projector Optics (GPO)
-DOT Compliant High/Low Beams with Day Running Light Support (Transport Canada (TC) Compliant for 07-18 Jeep JK with DRL equipped and enabled)
-Hard Coated Polycarbonate Lens
-Precision Die-Cast Aluminum Housing

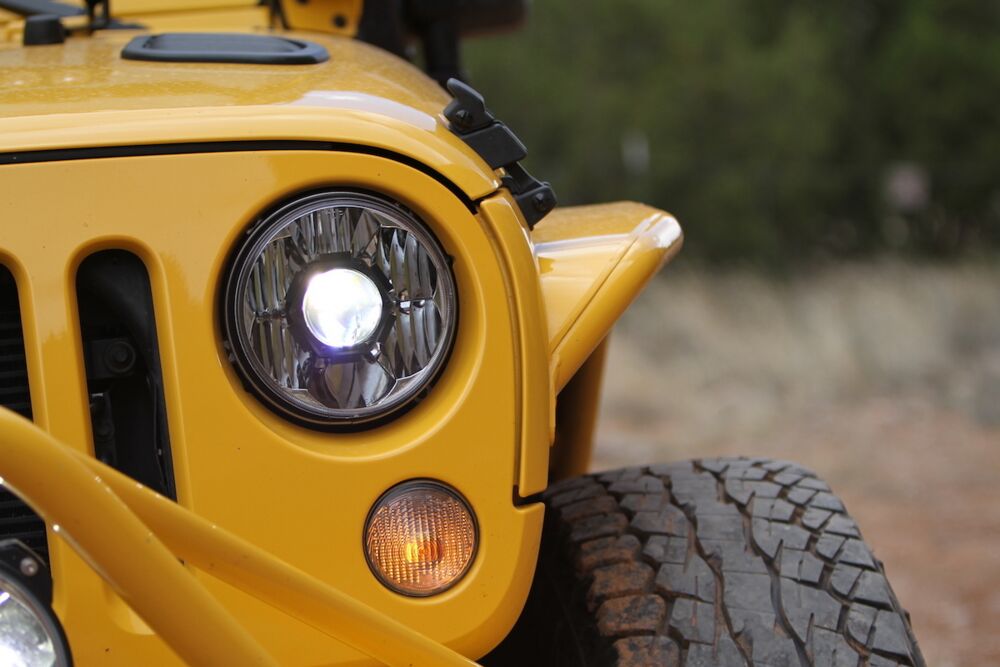

-Plug-n-Play for 07-18 Jeep Wrangler JK/JKU With Factory Halogen Headlights
NOTE:
Does not fit 17-18 Jeep Wrangler JK Rubicon/Sahara editions or Jeeps equipped with factory LED headlights.
Lens depth will not fit in certain aftermarket grilles, such as the "Angry Eye"
LIGHT PERFORMANCE
SPECIFICATIONS
GRAVITY LED EXTREME OUTPUT AND EFFICIENCY
The Gravity LED Pro 7" headlight uses KC's newly patented Gravity® Projector Optic (GPO). Utilizing this proprietary projector lens technology along with a GRD LED core, KC engineers were able to deliver a more controlled beam pattern while setting new industry standards in light shape, clarity, and output.
HIGH-PERFORMANCE LED OPTICS
The Gravity LED Pro 7" Headlight features KC's patented Gravity GPO & GRD technology, which is engineered to direct every lumen from the LEDs to the reflector optics.
HIGH/LOW/DRL FUNCTIONS
High/Low beams with DRL functionality come standard in this KC LED projector headlight greatly improving visibility and clarity over factory 07-18 Jeep JK halogen headlights.
DESIGNED FOR DURABILITY
Surrounding our high-performance Pro 7" Headlight is a durable die-cast housing and a hard coated Polycarbonate lens, designed to withstand the harshest climates, terrains, and driving conditions.
-40W Patented Gravity Projector Optics (GPO)
-DOT Compliant High/Low Beams with Day Running Light Support (Transport Canada (TC) Compliant for 07-18 Jeep JK with DRL equipped and enabled)
-Hard Coated Polycarbonate Lens
-Precision Die-Cast Aluminum Housing
-Plug-n-Play for 07-18 Jeep Wrangler JK/JKU With Factory Halogen Headlights
NOTE:
Does not fit 17-18 Jeep Wrangler JK Rubicon/Sahara editions or Jeeps equipped with factory LED headlights.
Lens depth will not fit in certain aftermarket grilles, such as the "Angry Eye"
LIGHT PERFORMANCE
- Raw Lumens: Low- 2,967 lm, High- 2,575 lm, DRL- 386 lm
- Lux @ 10 Meters: Low- 400 lx, High- 700 lx
- Candela: Low- 40,000 cd, High- 70,000 cd
- Beam Distance: Low- 400m, High- 529m
SPECIFICATIONS
- Wattage: Low- 20W, High- 30W, DRL- 1.35W
- LED Bulb: CREE: XP HI/XPG2
- Color Temp: 5000K
- Amp Draw: 1.88A
- Voltage: 9V-18V
- IP Rating: IP68
- Product Dimensions: W - 6.96" x D - 5.098"
GRAVITY LED EXTREME OUTPUT AND EFFICIENCY
The Gravity LED Pro 7" headlight uses KC's newly patented Gravity® Projector Optic (GPO). Utilizing this proprietary projector lens technology along with a GRD LED core, KC engineers were able to deliver a more controlled beam pattern while setting new industry standards in light shape, clarity, and output.
HIGH-PERFORMANCE LED OPTICS
The Gravity LED Pro 7" Headlight features KC's patented Gravity GPO & GRD technology, which is engineered to direct every lumen from the LEDs to the reflector optics.
HIGH/LOW/DRL FUNCTIONS
High/Low beams with DRL functionality come standard in this KC LED projector headlight greatly improving visibility and clarity over factory 07-18 Jeep JK halogen headlights.
DESIGNED FOR DURABILITY
Surrounding our high-performance Pro 7" Headlight is a durable die-cast housing and a hard coated Polycarbonate lens, designed to withstand the harshest climates, terrains, and driving conditions.
