DS18
NXL 4-Channel Full-Range Class D IP67 Marine and Powersports Flush Mount Amplifier 4 x 100 Watts Rms @ 4-Ohm
Quantity:
Choose options
Quantity:

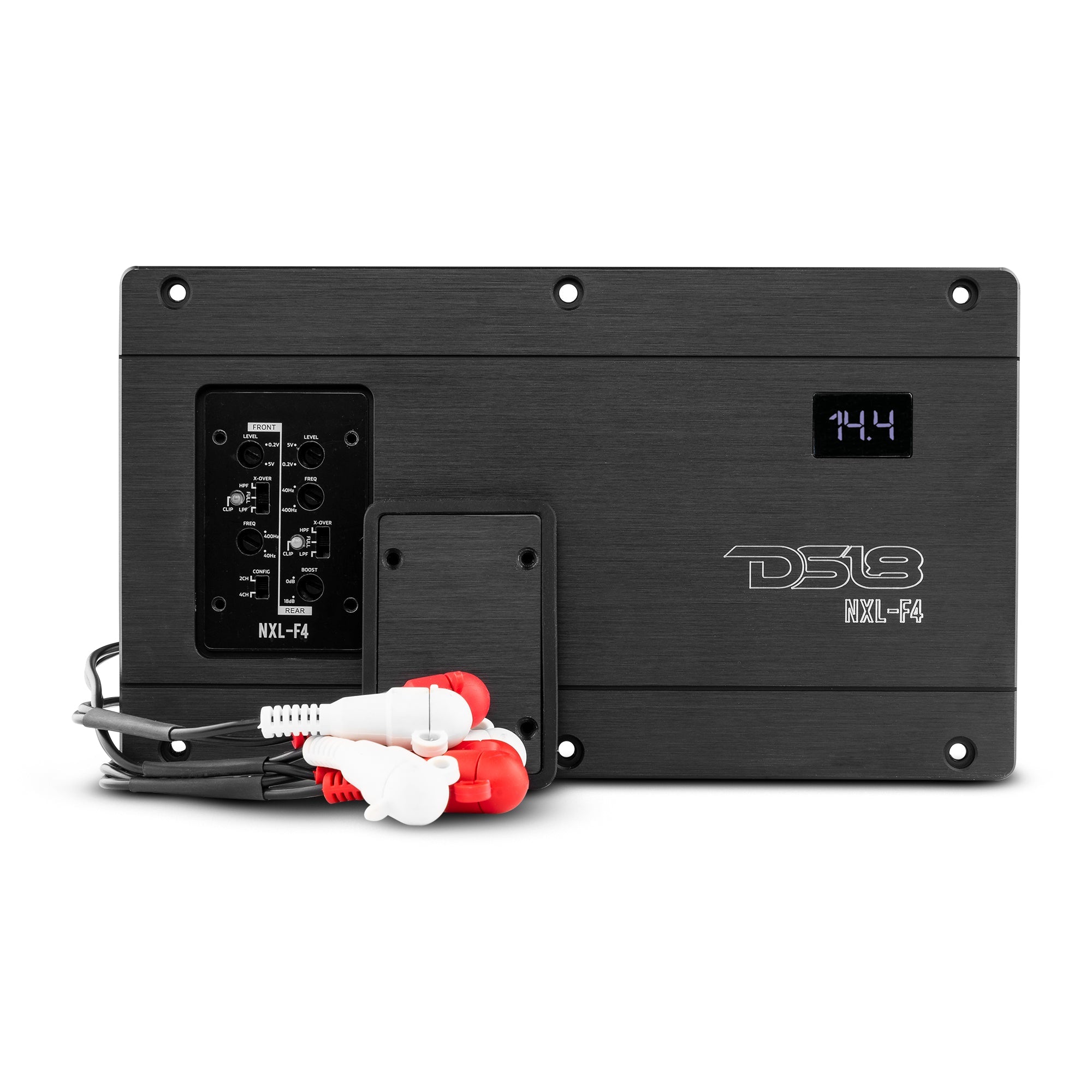

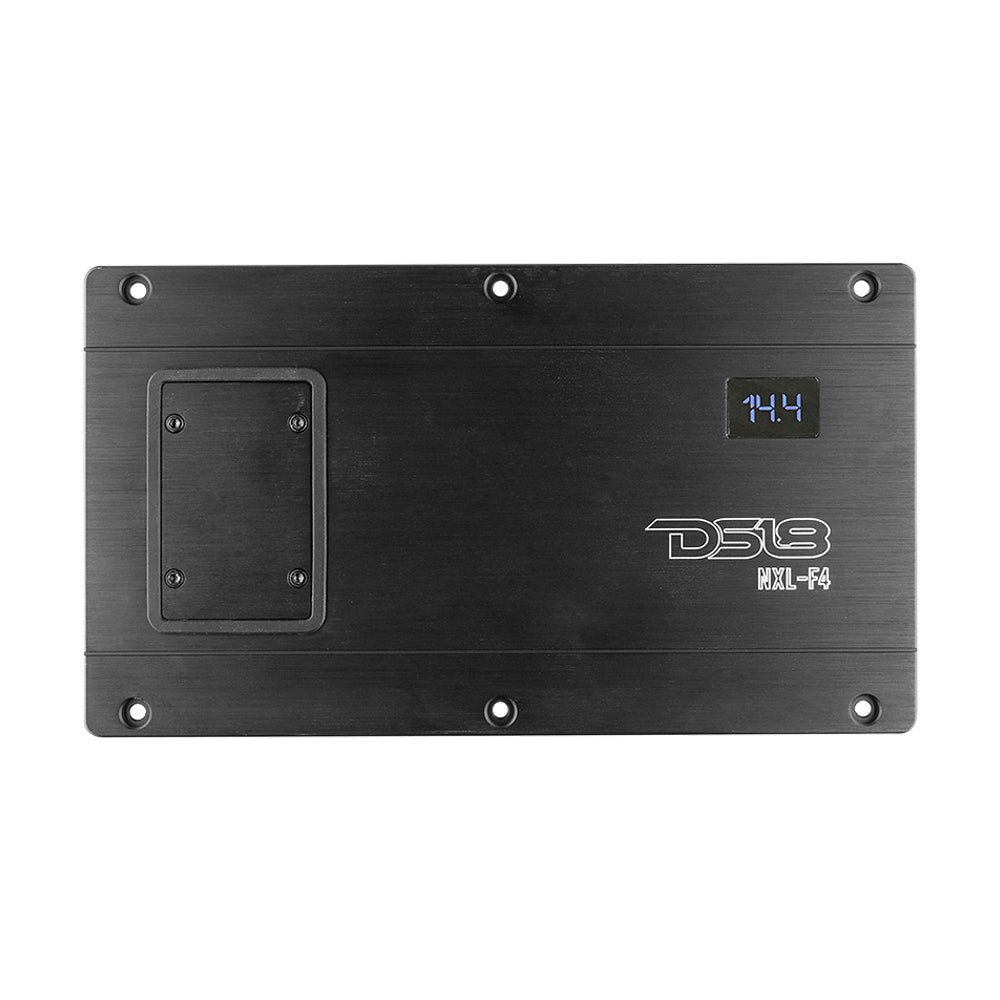

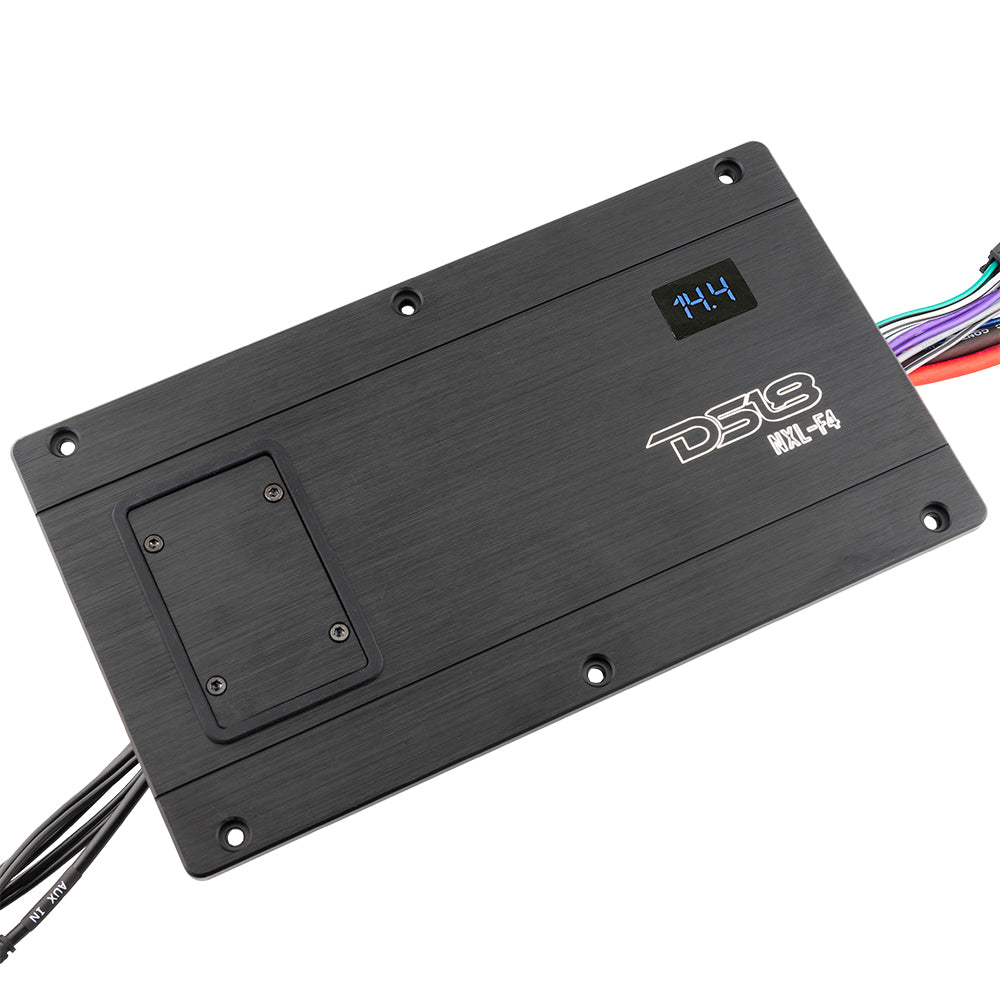

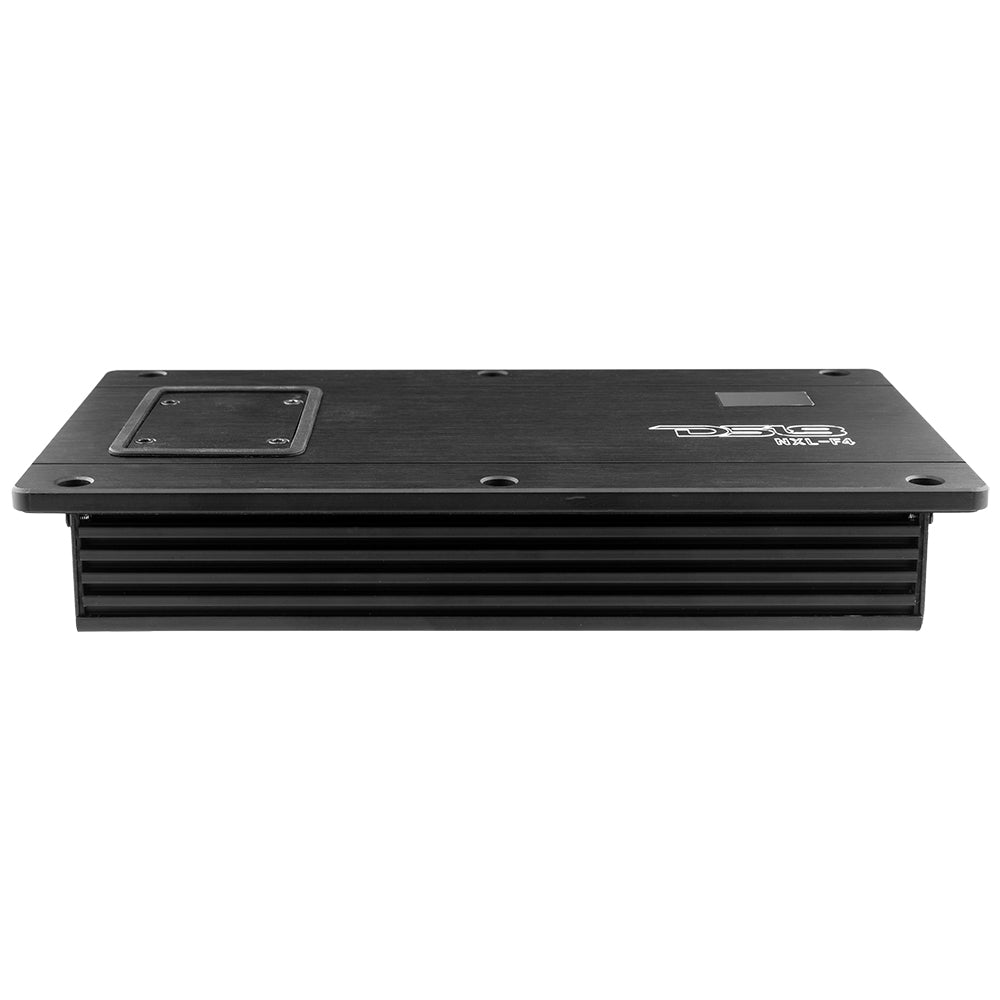

DS18 HYDRO NXL-F4 Flush Mount Class D Full-Range Marine 4-Channel Boat, ATV, UTV Amplifier with Voltmeter 1200 Watts
The F4 is an exact duplicate of the very popular NXL-400.4 but now offered in flat mount configuration so you can keep a flush and clean look to your install. This 4 channel amplifier is the go to source to power all your DS18 marine speakers as all are an amazing fit with this sleek and powerful hydro amp.
Highlights
- Flush / Flat mount design so you can keep your install looking clean and flush.
- Great to power all DS18 NXL series speakers with great loudness and efficiency.
- Full Range configuration so it can be used for virtually any speaker within its power recommendations.
Technical Details
| Power Output @ 2 ohms | 160Wx4CH |
| Power Output @ 4 ohms | 100Wx4CH |
| Bridge Power Output @ 4 ohms | 320Wx2CH |
| Total Harmonic Distortion | <0.1% |
| S/N Ratio Red 1W @ 4 ohms | 90dB |
| Gain Range | 0.2-6V |
| Crossover Range | 40 - 400Hz |
| Frequency Range | 20Hz - 20KHz |
| Bass Boost | 0-18dB (Rear CHs) |
| Forced Cooling System | N/A |
| Bass Remote Control | N/A |
| Topology Operation | Full Range Digital |
| Dimensions (MM) | 238 x 135 x 41 |
