Description

Track Actual Belt Temperature
Razorback Belt Temperature Gauge is the first in the industry to feature infrared sensors that monitor actual surface belt temperature. These infrared sensors are mounted on the removable clutch cover and are aimed directly at the cvt belt. This real-time reading of a belt’s surface temperature allows riders to avoid damaging temperatures and get more miles from their belts. We’ve programmed our gauges with screen inversion or LED alerts to warn riders when their belts reach temperatures at which heat damage can occur, letting them back off before they cook their belts.

Dial-In Clutching
Monitoring actual belt temperature is also a great indicator of clutch tuning and performance. With an infrared belt temperature gauge, riders are able to see exactly how adjustments or modifications impact the load that is placed on their belts. If a belt is heating up faster than normal or fails prematurely, it could be a result of increased friction to the sides of the belt resulting from misaligned clutches. A poorly tuned clutch setup with the wrong weights or a worn out spring could also contribute to belt slippage and generate unnecessary heat. A Razorback Technology infrared belt temperature gauge is an invaluable tool when adjusting clutching.

Monitor Belt Life

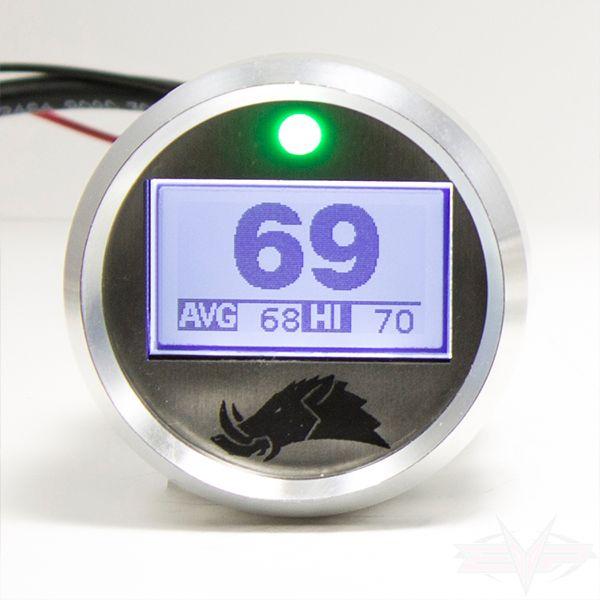

When you ride with a Razorback Technology belt temp gauge, you’ll be able to monitor the condition of your belt as you ride. Here’s how: Watch for how quickly belt temperature fluctuates. If a belt begins to heat up significantly faster from ride to ride, it is clear that belt condition should be a concern going forward. With our 3.1 Edition gauges, we introduced Average and High Temperature tracking. When the average belt temperature increases by 40-50° F, it is time to start thinking about replacing the belt. Another red flag of expiring belt life is a sudden temperature spike of real-time temperature. A 60-70° F jump usually signals that the belt is about to blow, and it is time to replace the belt before it completely goes.

Additional Information

Dimmable Operation:

Press the rocker switch to increase brightness by one level
(e.g. from level 1 to level 2). Pressing the rocker switch from
the level 5 position, will reset the display dimmer back to level
1 (dimmest).
Once powered off, the gauge will remain at the last
brightness setting and remain there once powered back on.

Additional Features:

• Water protection: IP65 Gauge. IP67 Sensor and Connection
• Ability to change from Fahrenheit to Celsius if needed
