Switch Pros RCR-FORCE 12 System:
Looking for the cleanest way to simplify all your accessories? This is it! Simply run one power wire to the "brain", then run your accessories to it, and run one wire to the lighted face plate which can be mounted anywhere and you are done! Its that easy! Includes labels for just about everything you could think of so you can easily label which button goes to which accessory. If you don't need 12 accessories be sure and check out the 8 button system.
Features:
- 12 user-programmable switches
- RCR-TOUCH® switch cover (United States Design Patent No. US D922,969 S)
- Waterproof, solid state power module
-
150amp capacity with 17 outputs
- 4 rated @ 35A and 1 rated @ 30A (High In-Rush circuits)
- 11 rated @ 15A, which can be combined for larger loads
- 1 Low Side driver switch, rated @ 2A
- Built-in Bluetooth module
- Program and operate accessories with phone or tablet
- System can be used to start vehicle

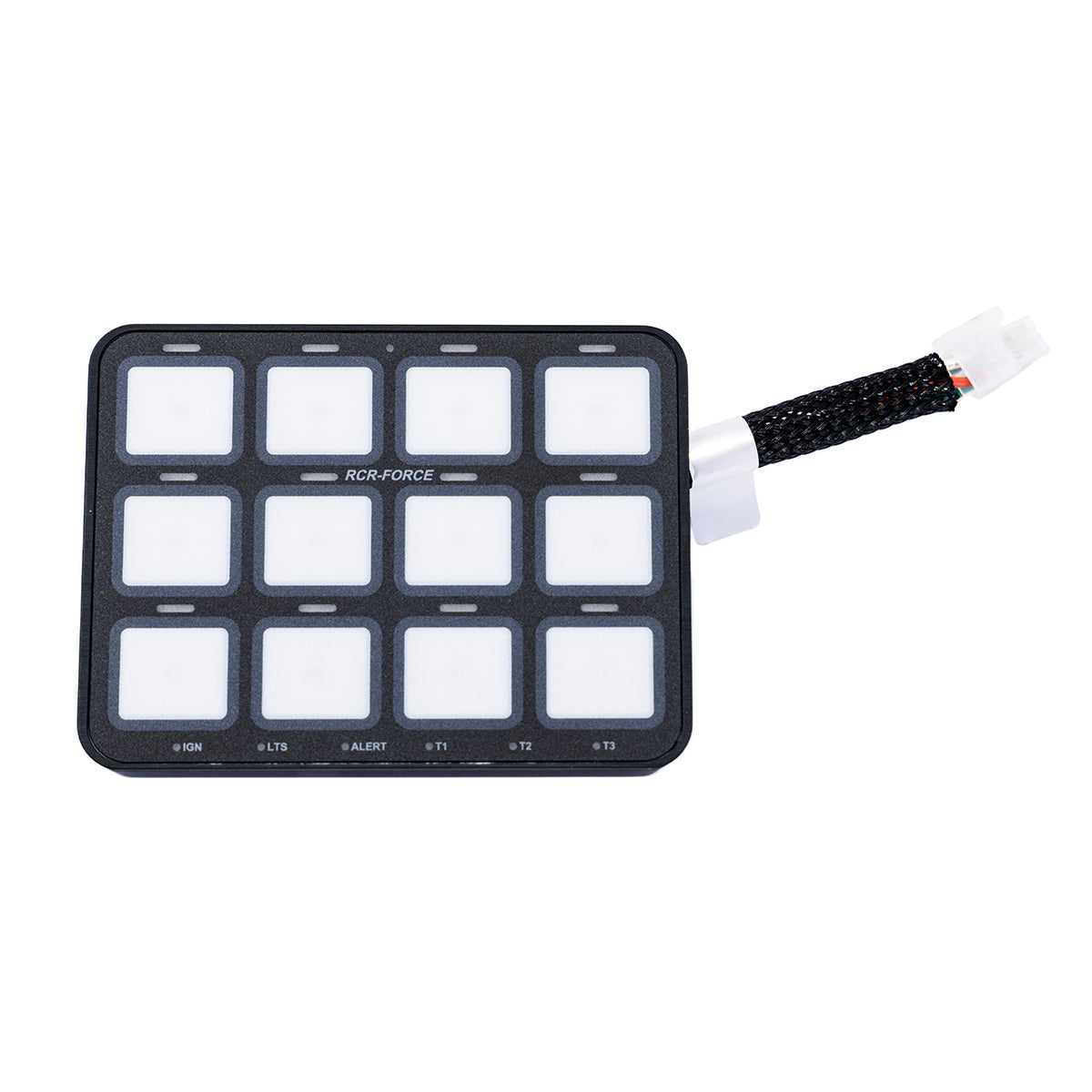

Switch Panel Specs:

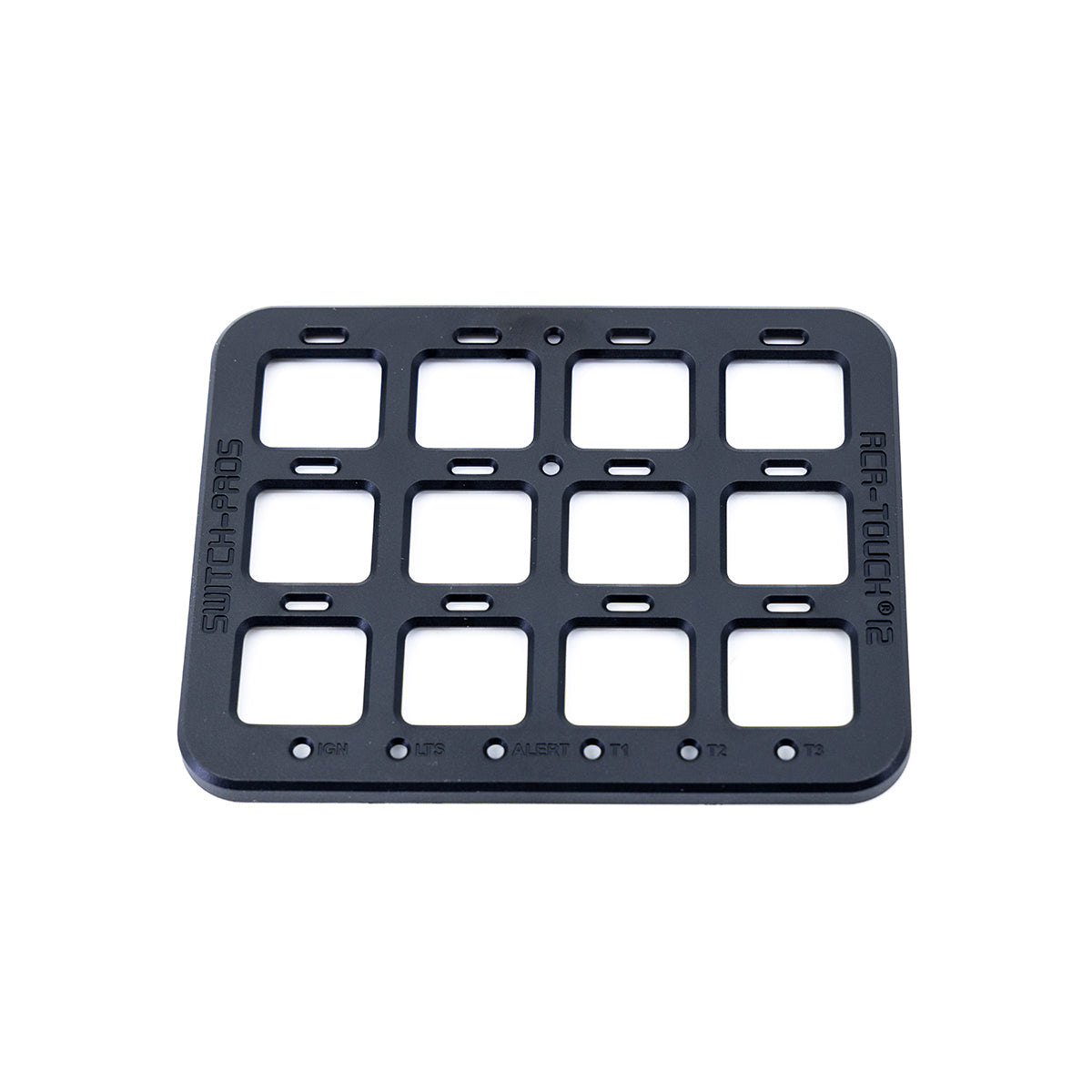

- RCR-Touch® cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain (United States Design Patent No. US D922,969 S)

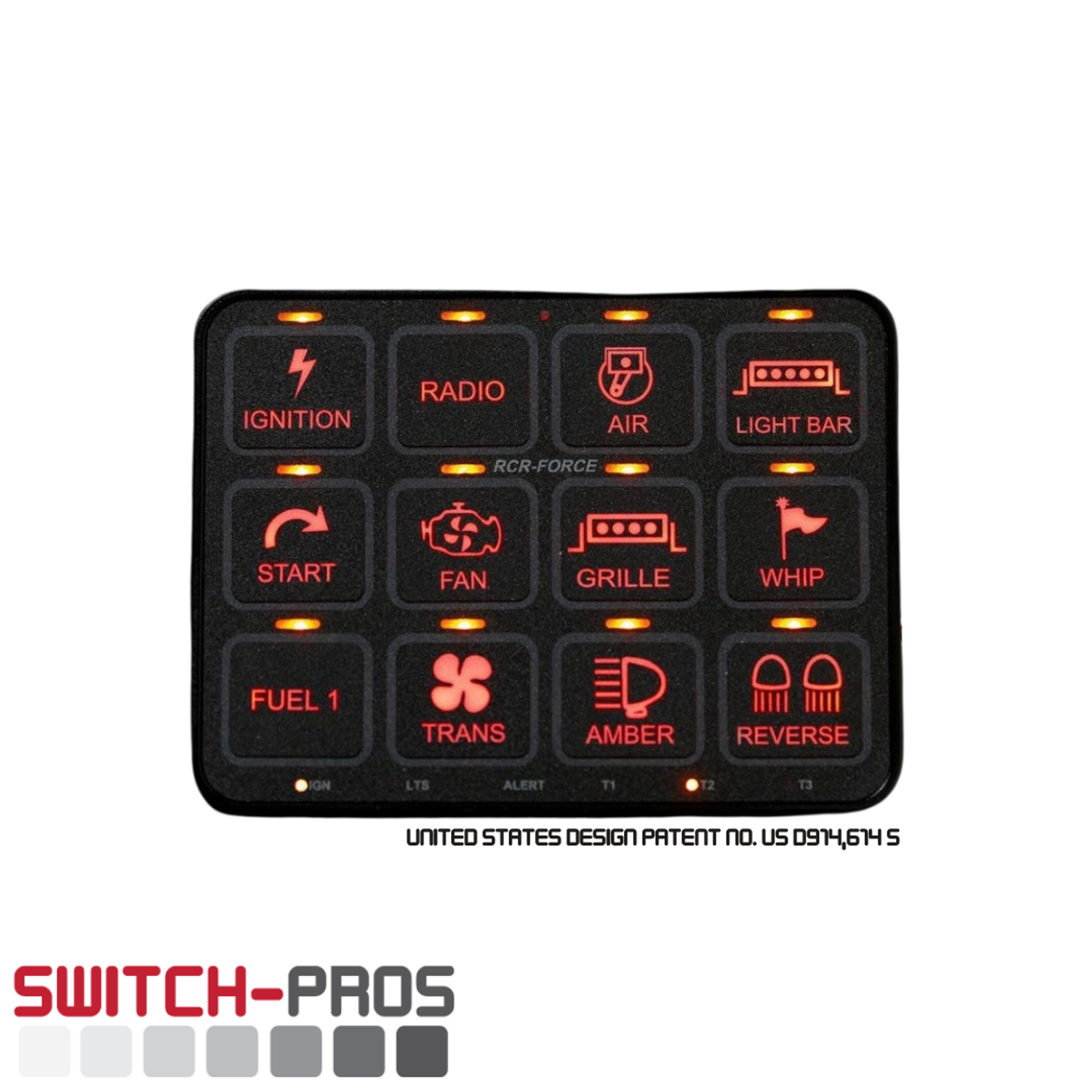

- Switch Panel enclosure measures 4” L x 3” W x .375” H (United States Design Patent No. US D914,614 S)
- Splash proof with Polycarbonate overlay faceplate
- Pre-machined for factory-look installation
- RGB backlighting
- Orange LED switch indicators
- 6 Programmable LED Status indicators

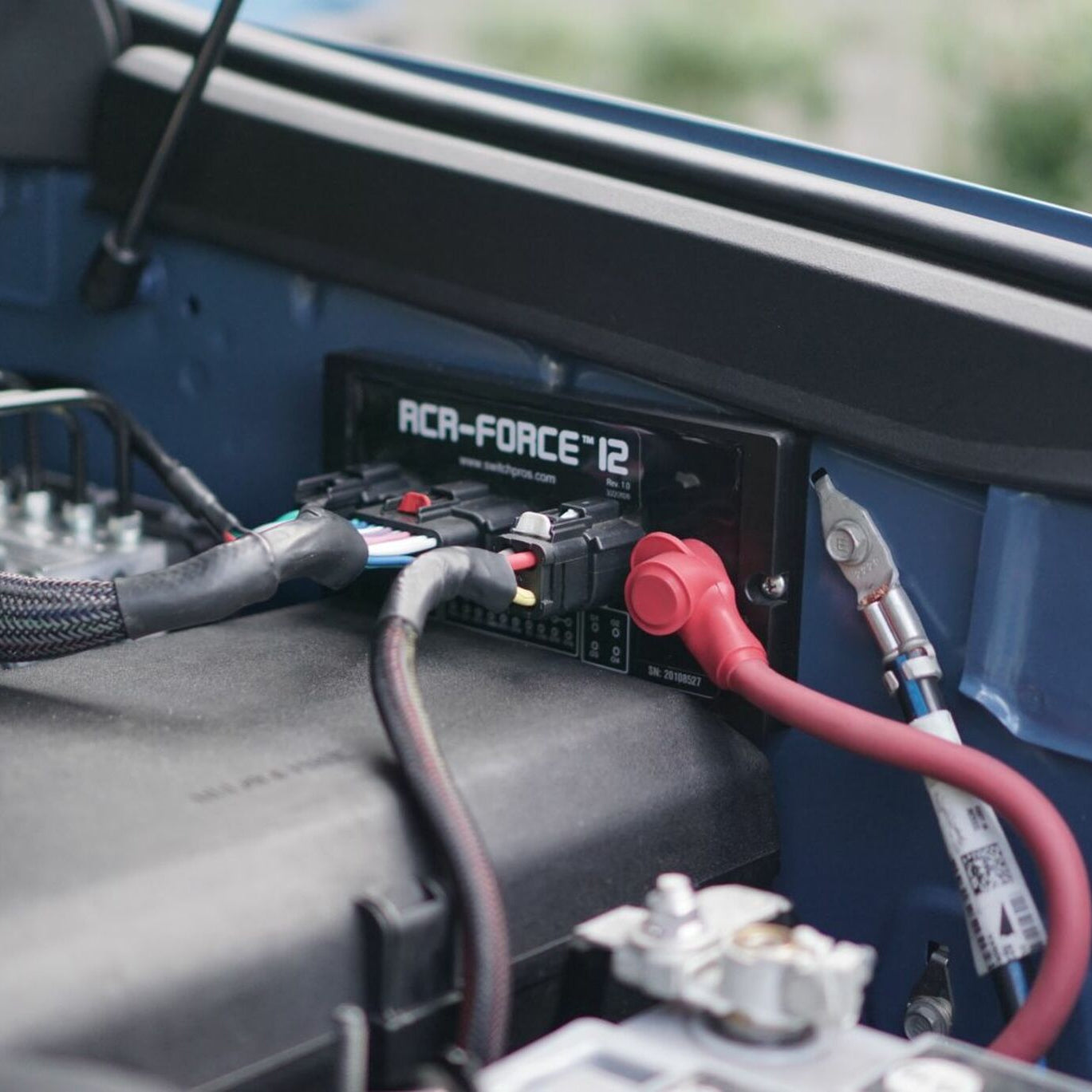

Power Module Specs:
- 17 Outputs: 4 rated @ 35A, 1 rated @ 30A, 11 rated @15A, 1 Low Side rated @ 2A
- 150A maximum rating
- 7”L x 3.5”W x .5”H (excluding connectors)
- Waterproof and Solid State
- Underhood rated 125° to -40°C
- LED Ignition Input Status Indicator

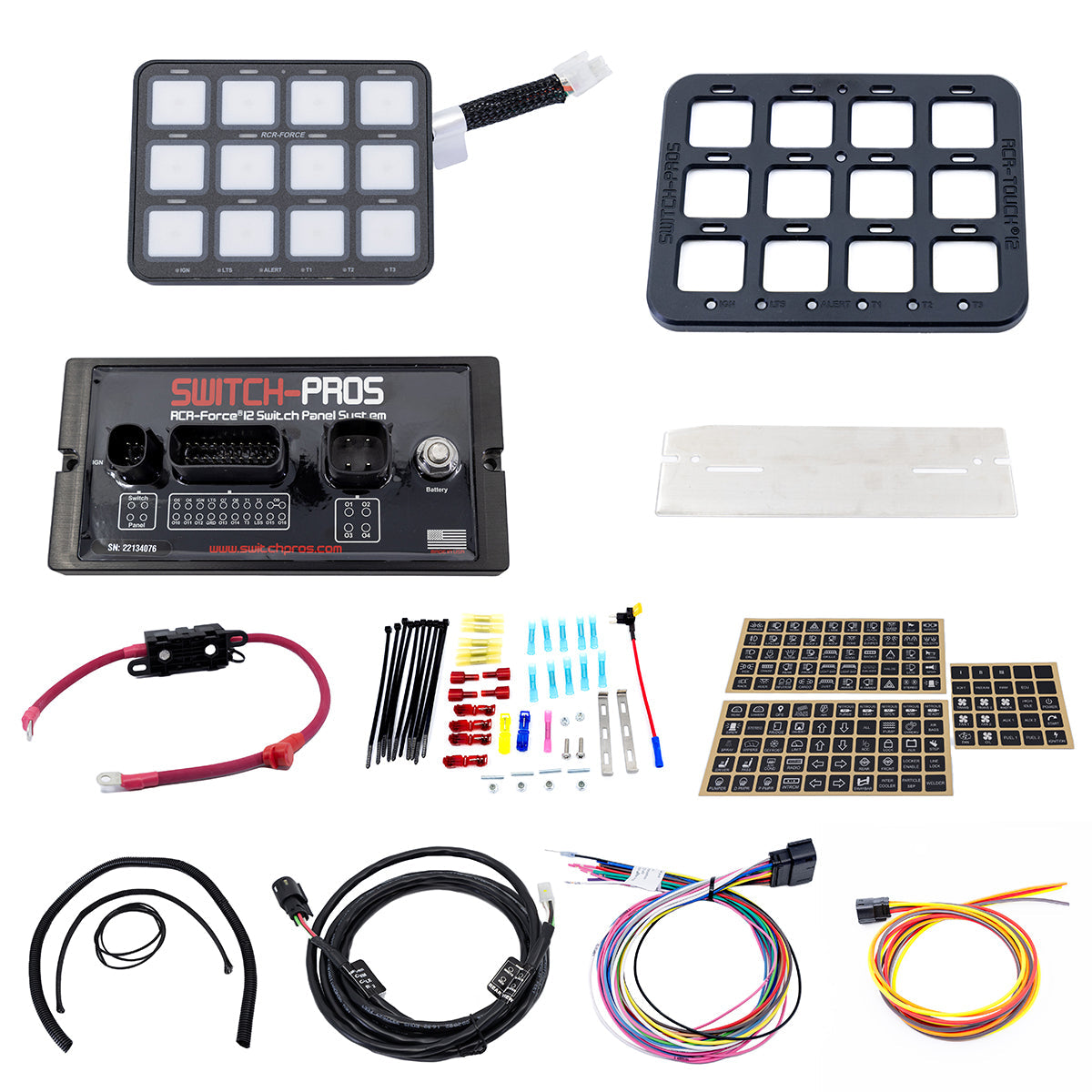

Kit Also Includes:
- 11’ of Communication Cable between Switch Panel and Power Module
- Power Cable with 150A inline fuse

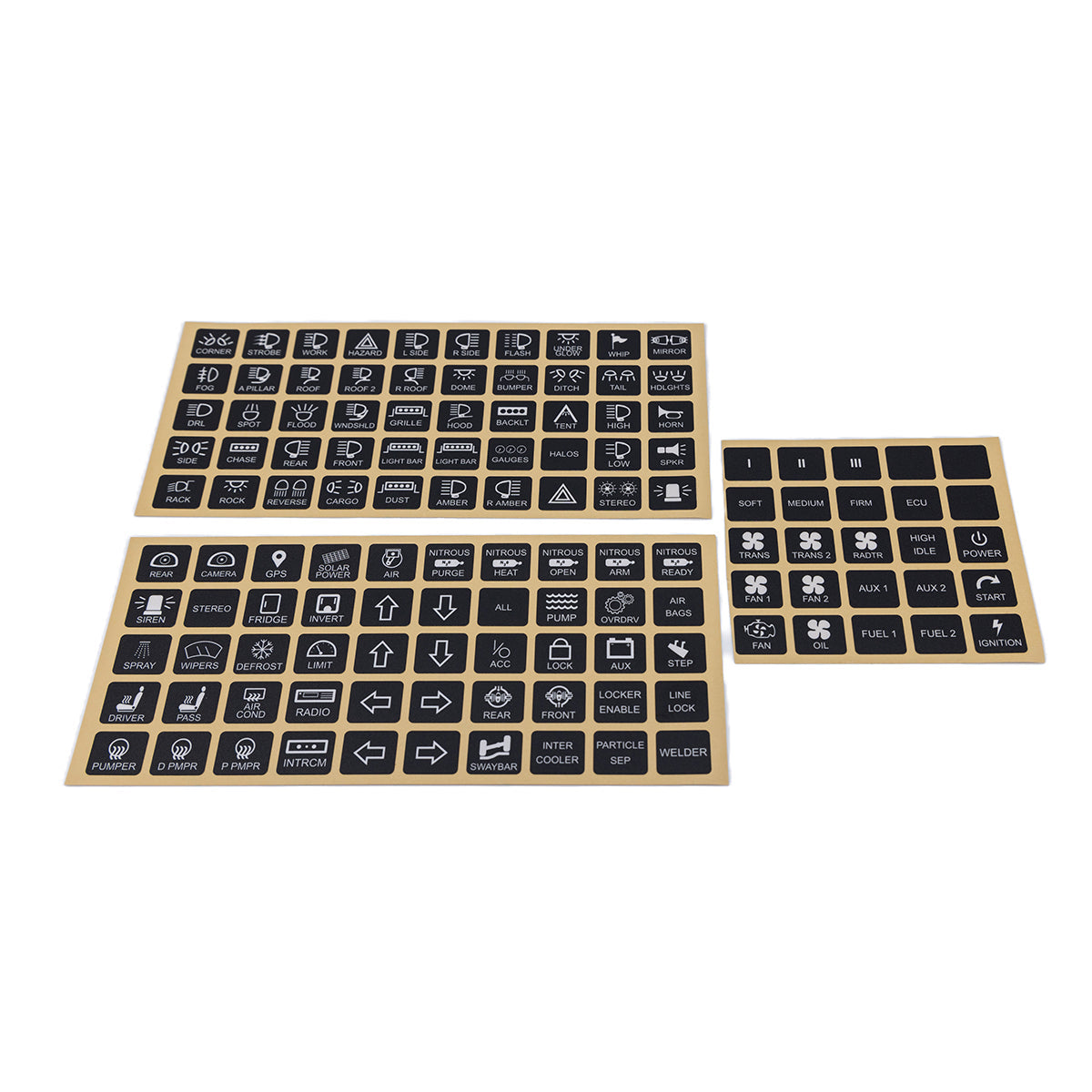

- 125 User Selectable Legends included (Horizontal orientation)

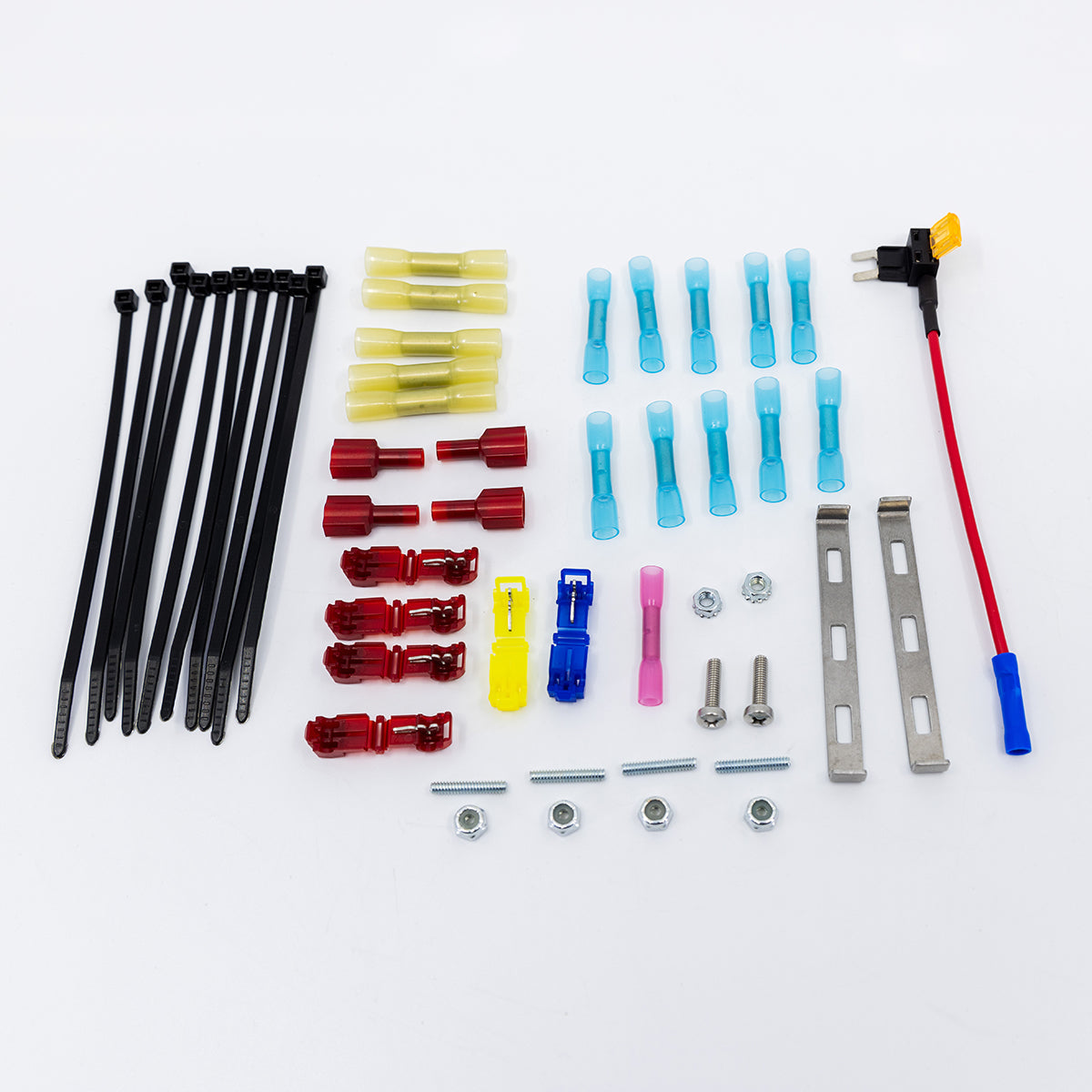

- Installation brackets and hardware
- Color Coded Output wires
- Wire harness with waterproof, sealed automotive grade connectors
Switches Can Be Programmed For:
- Preset Dimming function WITH MEMORY (100% to 10% brightness)
- Master Mode, with ability to turn multiple outputs On AND Off with one touch
- Every Master Switch can control up to 4 other switch outputs
- On-On-Off logic
- Touch Panel lockout
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Automatic Power-Up upon vehicle start up
- Safety Lockout for specific switches
- Time Delay off
Additional Features:
- No bulky relay box
- RGB Backlighting with unlimited color options
- Three External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
- Sleep Mode for minimal power consumption
- Color coded output wires
- Daisy Chain up to 3 Switch Panels to One Power Module
- Free app for iOs and Android platforms
- Splash proof switch panel with Polycarbonate overlay faceplate
- LED Input Status Indicators for easy troubleshooting
- Battery Voltage Readout on App screen
