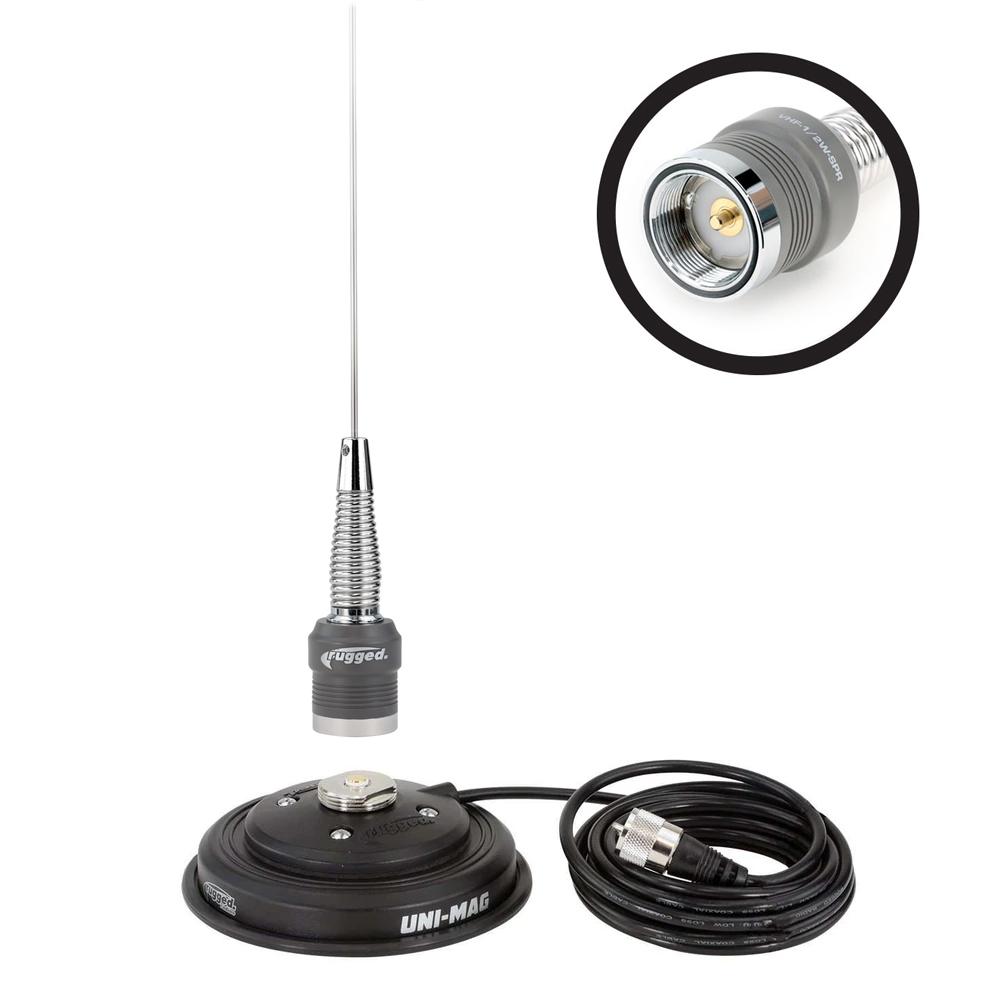

VHF Antenna Kit with 1/2 Wave No Ground Plane (NGP) Antenna & Magnetic Mount

Rugged Radios

VHF 1/2 Wave No Ground Plane (NGP) Antenna Kit with Magnetic Mount

Sale price$98.00 USD

Rugged Radios Antenna Installation Guide

Simple kit combines what you need for antenna replacement in the field. Includes a powerful magnetic NGP (No Ground Plane) antenna mount, a VHF 1/2 Wave antenna with threaded NMO base, and 13 feet of coax cable.

"No Ground Plane" means the antenna does not have to be attached to a metal surface (such as a vehicle roof or larger body panel). Although using a ground plane is always better, this NGP antenna performs great for all uses, drivers, teams, and applications.

Molded high heat ABS mounting base features silver soldered connections, gold plated push pin contacts and O-ring.

The VHF antenna is already pre-tuned (cut) for VHF application. Simply order, mount, and ride!

VHF Range - 144-174
Connector Type - None
Color - Chrome Model(s)
Gain - 2.4 dB
VHF Bandwidth - 4 MHz
Power (watts) - 200
Whip Material - 17-7PH Stainless Steel
Whip Length @ 154 mHz - 39.8"
Base Style - Magnetic Mount
Mount Style - None
Connector Type - None
