Our new radiator shroud support brace is designed to prevent the radiator shroud from breaking on the top ear around the mounting point as they're prone to do. The brace sandwiches between the factory mount and the plastic radiator shroud and pulls up on it slightly to relieve tension on the mounting hole ears. We supply you with new rubber grommets with a larger grip range to allow for the shroud and the 1/8" 4130 to both fit inside of it. The supplied rubber grommets are also higher durometer and allow for better isolation from the cars vibrations and provide a tight fit for the brace to the shroud. Radiator shroud support brace is constructed from 4130 Chromoly and is powder-coated matte black.

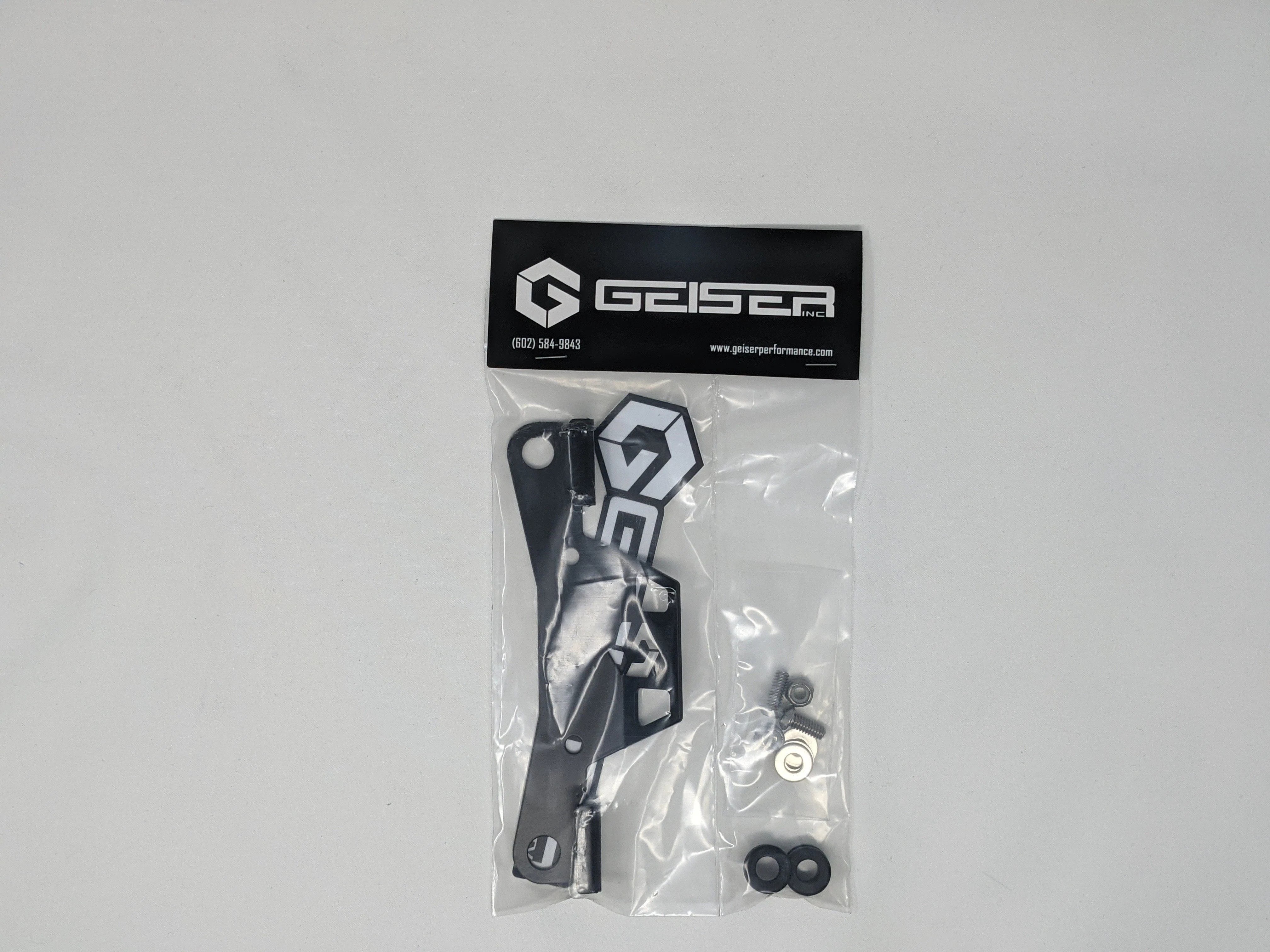

1 - Radiator Support Brace
2 - Rubber Grommets
(USED FOR MOUNTING THROUGH THE SHROUD - REQUIRES DRILLING)
2 - 1/4"-20 x 5/8" SS Button Head Socket Cap Bolts
2 - 1/4"-20 SS Nylon Locking Nuts
4 - 1/4" SS Flat Washers
